Automatic European Standard Pallet Feet Block Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 25 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYS, TYD, TYT

Detail Information

Name: Automatic European Standard Pallet Feet Block Machine Production Efficiency (m3/24h): 5-9
Voltage: According To Local Standard Condition: New
Automatic: Yes Dimension(l*w*h): 4800*900*1420
Keywords: Pallet Feet Block Machine, Automatic Pallet Feet Machine, European Pallet Block Machine
High Light:

automatic pallet feet machine

,

european pallet block machine

,

pallet feet block machine

Product Description

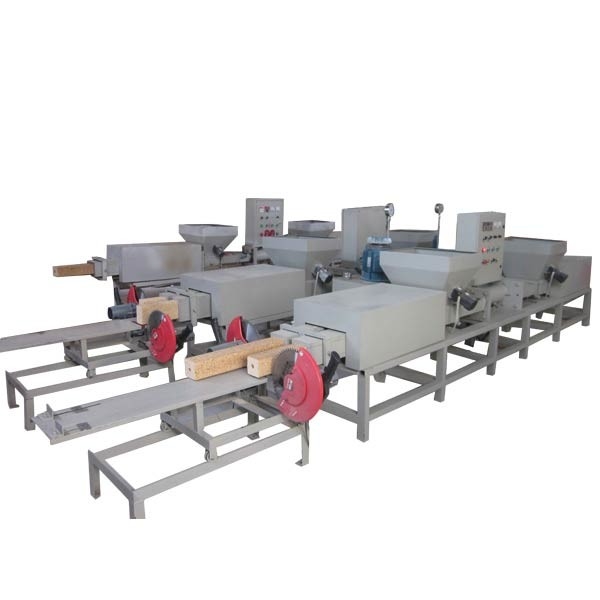

Automatic European Standard Pallet Feet Block Machine



Introduction of Automatic European Standard Pallet Feet Block Machine



Automatic European Standard Pallet Feet Block Machine is designed to produce pallet block, which is for the transportation pallet. The final product could get the E1 grade. The pallet block can be solid without a hole in the middle and also can be hollow.



1. It could recycle wood waste efficiently.

2. Easy to operate. One person could handle 3 machines.

3. Saving the production cost and enhancing the process of automation.

Automatic European Standard Pallet Feet Block Machine 0

How does Automatic European Standard Pallet Feet Block Machine Work?

1. The hydraulic cylinder provides high pressure and pushes the piston to extrude and mold the materials.

2. The heating of the heating plate at a high temperature promotes the solidification and molding of urea-formaldehyde glue.

3. Cutting according to a certain length (usually around 1.2 meters).

4. After cooling, Automatic European Standard Pallet Feet Block Machine cut the long wood strips of half-finished products to the final size.

Automatic European Standard Pallet Feet Block Machine 1

Parameters of Automatic European Standard Pallet Feet Block Machine

Model TYS TYD TYT
Size (mm) 4800*780*1320 4800*780*1320 4800*900*1420
Length and width of block (mm) 75-145
Power (kW) 16.86 22.26 30.26
Density (kg/m3) 550-600
Production efficiency (m3/24h) 2-5 3-6 5-9
Dimension with saw (mm) 8000*600*1500 8000*700*1500 8000*700*1500
Weight (kg) 1000 1500 2000
Block size: 75-145 mm in width, 75-145 mm in length. Customized by customers required.

Automatic European Standard Pallet Feet Block Machine 2

Advantages of Automatic European Standard Pallet Feet Block Machine

1. Free fumigation. The block is made by hot pressing, so it is “Export Ready”.

2. Automatic European Standard Pallet Feet Block Machine could recycle the wood waste efficiently. An Automatic European Standard Pallet Feet Block Machine is changing the waste wood into wood pallet blocks, so it helps to protect the environment.

3. Easy to operate. One person could handle 3 machines.

4. Saving the production cost and enhancing the process of automation. The price of the raw materials is less than 50%, so the production cost is also lower than 50%. In addition, the technology process of Automatic European Standard Pallet Feet Block Machine is easier, and easy to operate.

5. One machine could make two different block sizes.

6. Block sizes of customized pallet block machine.

Normally 90*90 mm, 90*100 mm, 100*100 mm, 80*90 mm. If you have special requirements, we could customize it while it ranges from 75 mm to 145 mm.

Automatic European Standard Pallet Feet Block Machine 3

Final wood pallet blocks

  1. Free fumigation and free quarantine.
  2. Insect prevention, protection against termites and do not easy to burn.
  3. Meeting the E1 grade.
  4. Customized sizes are available.

Automatic European Standard Pallet Feet Block Machine 4

Raw Materials for Automatic European Standard Pallet Feet Block Machine

Urea-formaldehy glue. Wood shavings, wood sawdust, small wood chip, and other wood waste materials (the moisture content is about 10-12%).

Automatic European Standard Pallet Feet Block Machine 5



Automatic European Standard Pallet Feet Block Machine 6
