One Time Hydraulic Pressing Forming Wood Pallet Machine

Product Description

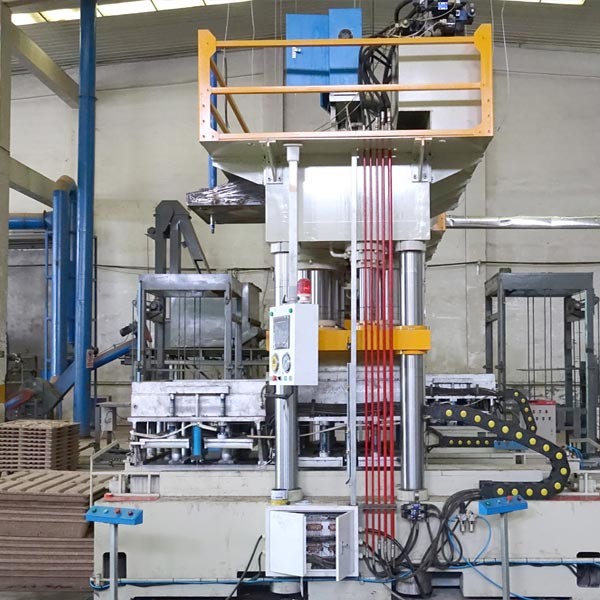

One Time Automatic Pressing Forming Wood Pallet Machine

Introduction of One Time Automatic Pressing Forming Wood Pallet Machine

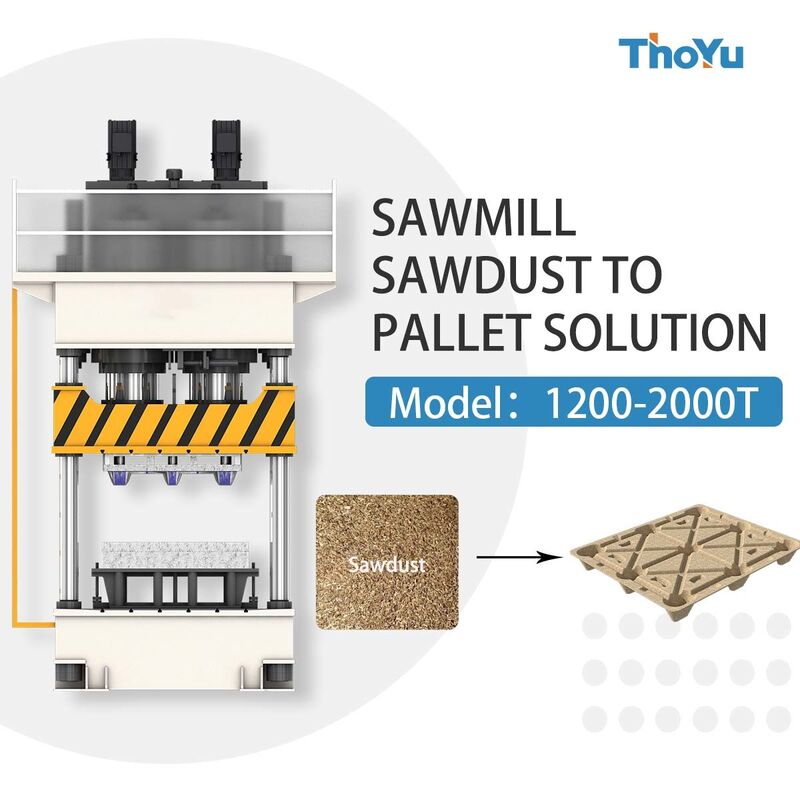

Automatic pressing forming wood pallet machine is used for the pressing and forming of moulded pallets from wood chips, straw, waste chemical fibers, and other raw materials. With an independent hydraulic system, after years of production practice in our factory proved that the stability of good performance, high production efficiency, energy-saving, can be used for steam or heat transfer oil heating, flexible, easy to change the mold, can produce a variety of specifications of the pallet, easy to install, no foundation positioning, placed flat to produce.

This automatic pressing forming wood pallet machine is designed with reasonable structure, adopts three-way synchronous positioning, precise and balanced mold closing, rapid liquid filling and pressing, can be completely pressurized in 35 seconds, convenient and simple operation.

Automatic Pressing Forming Wood Pallet Machine Parameters

Automatic Pressing Forming Wood Pallet Machine Working Principle

Just lay the wood chips flat in the mold, press the work button, the press wood pallet machine will automatically complete the whole process of lowering, pressing, pressing, limiting, holding, timing, unloading, demoulding, lifting in place, and moulding a pallet holding pressure curing time of about 350 seconds.

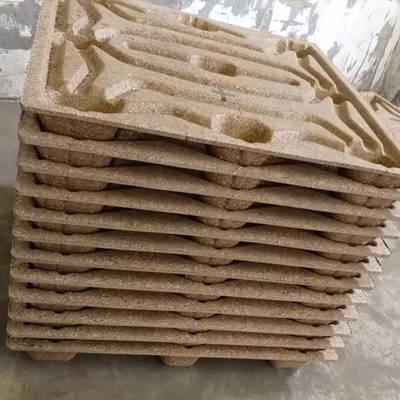

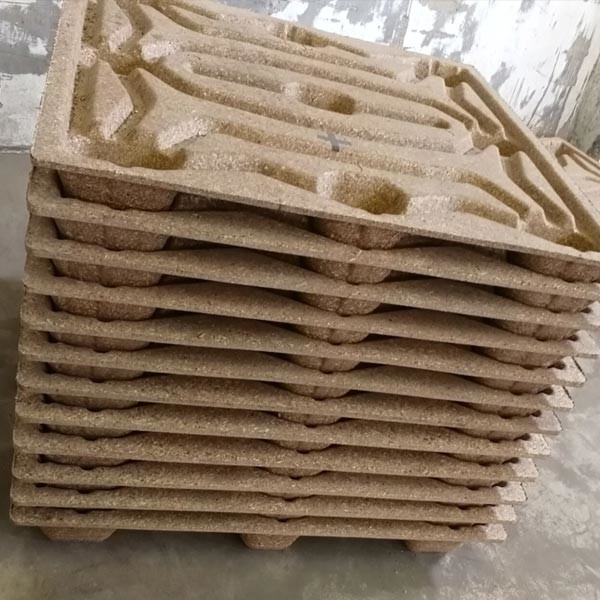

Pressed Wood Pallet Features

1. One of the main advantages of molded pressed wood pallet is its versatility.
2. As already mentioned, pressed wood pallets are both nestable and stackable.
3. This versatility means that they can be stored in smaller stacks, freeing up valuable warehouse space for businesses and manufacturers.
4. This also allows businesses to store more pallets on-site, maximizing the space available to store products, equipment, machinery, etc.

There are various designs of this automatic pressing forming wood pallet machine. And it is divided into different die presses of 180 pcs/day, 240 pcs/day, etc. according to the capacity, the total pressure is 0-1200 tons, equipped with 4 cylinders, the density of pressed pallets is 900 kg/m³, the weight of the whole machine is 22-30 tons. And the beautiful appearance is available for different specification processing.
