Product Description

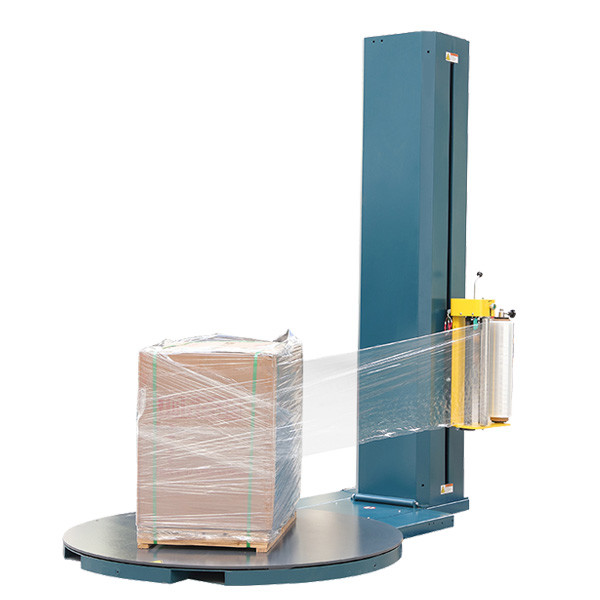

TYPSW-1000 PE film Semi-Automatic Pallet Stretch Wrapper Machine
Introduction of TYPSW-1000 PE film Semi-Automatic Pallet Stretch Wrapper Machine:
TYPSW-1000 PE film semi-automatic pallet stretch wrapper machine work process is using LLDPE stretch film (a plastic film) to wrap goods which load on the pallet, the stretch film provides extra support. While the products being transported or stocked so that they do not tip, spill, or otherwise damaged. TYPSW-1000 PE film semi-automatic pallet stretch wrapper machine is widely used in the chemical industry, electronic industry, building materials, home appliances, paper making, foodstuff & drink, etc, especially the container goods transportation in foreign trade.

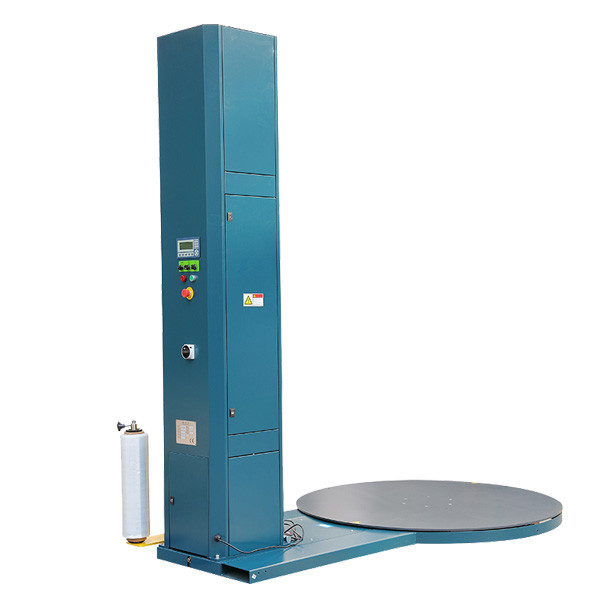

Control Panel of TYPSW-1000 PE film Semi-Automatic Pallet Stretch Wrapper Machine:
Auto-Start: PE film semi-automatic pallet stretch wrapper machine will start to work

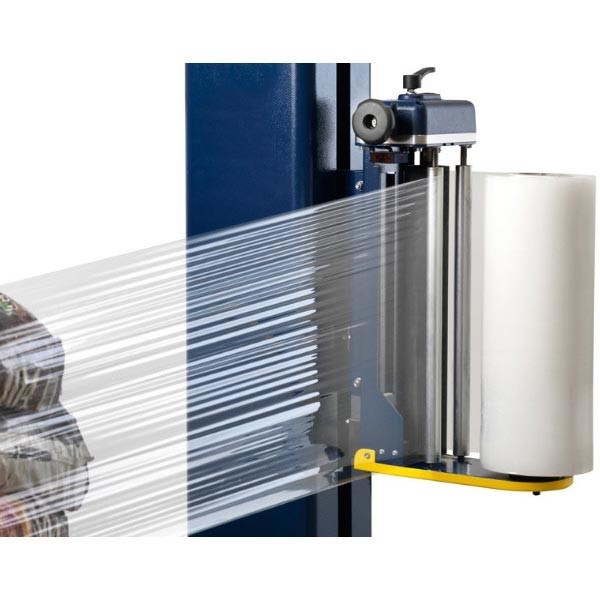

Film tension: This switch is adjustable to set various film tension between the film system and the goods being wrapped.
Carriage speed: Adjust the speed of the carriage up and down.
Technical Parameters of TYPSW-1000 PE film Semi-Automatic Pallet Stretch Wrapper Machine:
| Voltage |
220 V, 50 Hz, 1.2 kW |
| Maximum package height |
2100 mm |
| Maximum package weight |
1000 kg |
| Pallet dimension |
1500 mm |
| Lift motor power |
0.40 kW |
| Turntable motor power |
0.40 kW |
| Turntable rotation speed |
0-12 rpm/minute (frequency adjustable) |
| Membrane film exit speed |
3.2 m/min (frequency adjustable) |
| Membrane frame lifting speed |
3.2 m/min (frequency adjustable) |
| Stretch film inner diameter |
76 mm |
| Turntable height |
95 mm |
| Film control method |
Frequency conversion pre-stretching |
| Machine size |
2650*1500*2510 mm |
| Machine weight |
700 kg |
Our Advantage of TYPSW-1000 PE film Semi-Automatic Pallet Stretch Wrapper Machine:
1. Machines use stretch films much more efficiently than if done by hand.
2. Load may be stacked higher resulting in reduced shipping costs.
3. Product can be hidden from view with the use of opaque films.
4. Increased protection from the elements, including UV rays.
FAQ:
Q: What is the delivery time?
A: About 7- 45 working days after the contract signing (After getting deposit). Delivery time will vary depending on the type of machine, shipping method selected, and part availability.
Q: What are your payment methods?
A: Accepted Payment Type: T/T, L/C, Western Union, Cash. After sign the contract, pay the 30%-50% deposit of the total purchase price and pay the full payment before delivery.
Q: Can you send me the video to show how the machine works?
A: Certainly, we have made videos of every machine and uploaded them to Youtube.
Q: How about the quality of your products?
A: a. Our products are manufactured strictly according to national and international standards.
b. All the machines are 100% tested before delivery.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
