Lumber Pine Wood Chipping Machine

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TYXP-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 10-50 working days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 25 sets per month

Detail Information

Product Name: Dustless Hammer Wood Shredder Feed Size: 1500*450 Mm
Outlet Size: 273 Mm Number Of Blades: 66 Pcs
Capacity: 5-8 T/h Density: 3-30 Mm
High Light:

Pine Wood Chipping Machine


Lumber Wood Chipping Machine


lumber chipper Shredder

Product Description

Dustless Hammer Wood Shredder Lumber Pine Wood Chipping Machine


Dustless hammer wood shredder is a new crusher independently researched and developed by our company with many years of working experience, compared with the traditional hammer wood shredding machine, the new hammer wood shredder is more reasonable and can reach the national call: Let environmental protection be more favorable, and use green to show the future.


Dustless hammer wood shredding machine completely changing the traditional unscientific design principles of using a suction fan to suck out the finished product and then treat the air volume. The hammer wood shredder will cause a part of the air volume at the same time when it is shredded. Using the negative pressure fan method will make the air volume more difficult to handle. As long as there is the wind, there must be dust. The larger the wind power, the more difficult it is to handle.


From the appearance point of view, the dustless hammer wood shredder is almost the same as other types of shredders. The other types of shredders produced by our factory have evolved from the hammer-type wood shredder. They have only slightly changed the internal structure and are suitable for use in the furniture factory’s leftovers, small pieces of wood, small wooden boards, plywood, twigs, scraps, edging, and other wood materials, which is crushed to a sawdust shape once. Even finer, the finest can reach about 60 meshes, get rid of the trouble of the second smash.


Dustless hammer wood shredder application


The dustless hammer wood shredding machine is mainly used for processing pine, miscellaneous wood, lumber, Chinese fir, original bamboo, and other materials, and is more suitable for processing wood chips in the edible mushroom culture medium. At the same time, scrap shredder can also be used for crushing bamboo, thatch, corn stalks, stalks, and other fiber stalk material smash. It can process all kinds of twigs, slats, small-diameter core wood, scraps, wood chips, bamboo, cotton stalks, and other materials into sawdust and wood-like products at one time, with low investment, low energy consumption and high productivity, good economic benefits, ease of use and maintenance.


Dustless hammer wood shredder parameters


Model Feed Size(mm) Outlet Size(mm) Number of blades(piece) Capacity(t/h) density(mm) main motor power(kW) Output motor power(kW) Feeding motor power(kW) Dust motor power(kW) Dimensions(m) Weight(tons)
TYXP-1500 1500*450 273 66 5-8 3-30 2-55*2 7.5 4 2.2 3.15*3.25*3.35 5.5

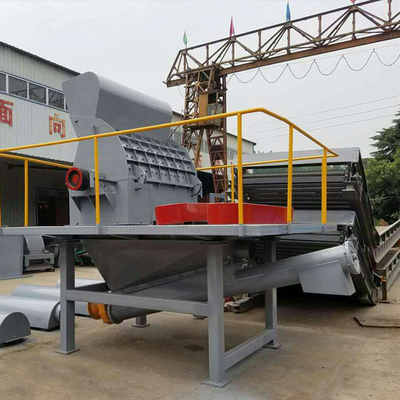

Lumber Pine Wood Chipping Machine 0

Dustless hammer wood shredder working principle


The dustless hammer wood shredding machine mainly consists of a trough feed conveyor, a smashing device, a lower discharge screw, a fan, and a dust collector. After the wood enters the grinding chamber through the feeding trough conveyor, it can be crushed in one step without drying. The crushed product is naturally shed into the lower storage silo of the host. The storage silo has a screw conveyor and sends the crushed sawdust out to the crusher. The air volume generated by the comminution is brought into the dust collector by the fan so that perfect dust-free shredding can be achieved.


Dustless hammer wood shredder characteristics


The original design of the dustless hammer wood shredding machine is to discharge the material without the fan. The distance between the hammer and the screen of the crusher is perfectly combined. During the crushing, the material in the crushing chamber will be circulated along with the hammer of the crusher in the crushing chamber. The finished product will naturally fall off with the aperture of the screen to the original waiting position of the hammer wood shredder when it is turned. To reduce the amount of wind caused by the crusher, we use a small draft fan to remove the excess wind. In order to ensure that the screw outlet of the grinder does not have dust.


Second, because the diameter of the hammer wood shredder is too long, we use two 55 kW motors to rotate a large shaft, which makes good use of the strength of the motor and can also increase production.

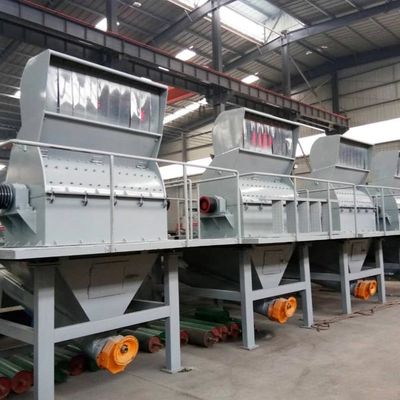

Lumber Pine Wood Chipping Machine 1



Lumber Pine Wood Chipping Machine 2
