Waste Wood Pallet Chipping Machine

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TYXP-2113
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 10-120 working days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 30 sets per month

Detail Information

Product Name: Waste Wood Pallet Chipping Machine Materials Max Diameter: 450 Mm
Chip Size: 38 Mm Production Capacity: 15-30 T/h
Conveyor Power: 4 KW Weight: 11840 Kg
High Light:

Wood Pallet Chipping Machine


Drum Pallet Chipping Machine


ThoYu Wood Chipping Machinery

Product Description

30 Tons Per Hour Drum Type Waste Wood Pallet Chipping Machine

Waste wood pallet chipping machine is suitable for crushing wood pallets, particleboard, density beaverboard, wood fiberboard, widely used in paper-making factory, power plant, and industrial boiler, etc.

Waste Wood Pallet Chipping Machine Usage

This waste wood pallet chipping machine crushes the raw material into small chips, these chips are the raw material of chipboard, density beaverboard, and wood fiberboard also could be burning material as a sort of fuel.

Technical Parameters of Waste Wood Pallet Chipping Machine

Model TYXP-215 TYXP-216 TYXP-218 TYXP-2113
Feeding port size (mm) 160*400 230*590 300*680 450*700
Fly-cutter qty (piece) 2-3 2-3 2-3 2-3
Revolving speed (rotate/minute) 592 590 650 500
Feeding raw materials max diameter (mm) 160 230 300 450
Chip size (mm) 30 30 30 38
Production capacity (ton) 3-5 8-10 14-18 15-30
Main motor power( kW) 45 55 90-110 200-250
Feeder power (kW) (2.2-3)*2 (3-4)*2 (4-5.5)*2 7.5*2
Oil pump motor power (kW) 1.5 1.5 1.5 3
Conveyor power (kW) 3 3 4 4
Weight (kg) 2990 5030 7000 11840
Dimension(mm) 1470*1550*970 1800*1900*1210 2200*2150*1500 3670*2517*2050

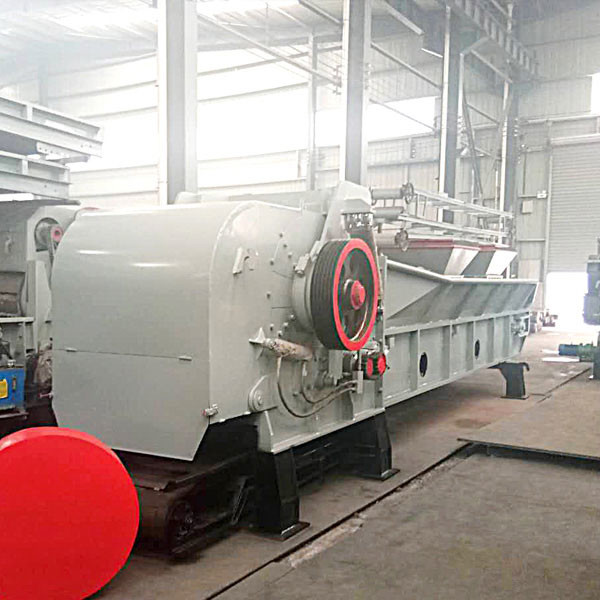

Waste Wood Pallet Chipping Machine 0

Waste Wood Pallet Chipping Machine Structure

Waste wood pallet chipping machine consists of the body, knife roller, top and bottom feed mechanism, feeding device, hydraulic system, and other parts.

The frame is made of high strength steel plate welding and become, is the support of the drum chipper basis.

The fly knives fixed on the roller, by special bolts which specially designed for fly knives, according to the different thickness of raw material, the top feed mechanism could be adjusted automatically; the small chips drop through the screen, the large size material will stay inside the machine and get chipped again.

The hydraulic system designed to be refilled by manual operation, so that the cover shell of the machine could be opened, easier for users to replace the parts and knives, also convenient for adjusting the space between knives and dead knives.

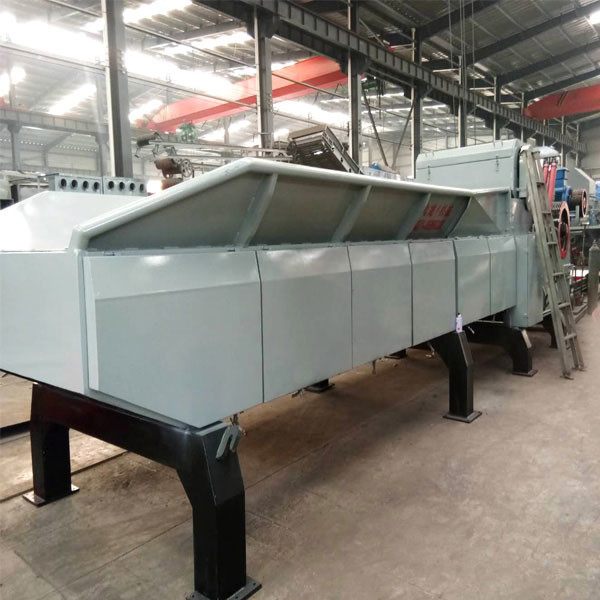

Waste Wood Pallet Chipping Machine 1

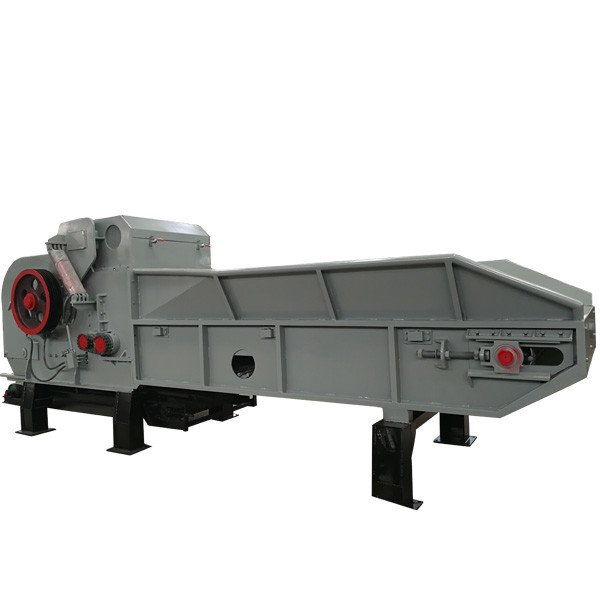

Waste Wood Pallet Chipping Machine 2
