Single Head Wood Pallet Block Production Line Machines

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYS

Detail Information

Name: Single Head Wood Pallet Block Production Line Machines Voltage: According To Local Standard
Condition: New Automatic: Semi Automatic
Method: Hydraulic Pressure Material: Sawdust
Color: According To Your Need Weight: 1050-1500 Kg
Keywords: Wood Pallet Block Production Line, Pallet Block Production Machines, Wood Pallet Block Machines
High Light:

pallet block production machines

,

wood pallet block machines

,

wood pallet block production line

Product Description

Single Head Wood Pallet Block Production Line Machines



Introduction of Single Head Wood Pallet Block Production Line Machines:



  1. Single Head Wood Pallet Block Production Line Machines is the equipment that produces wood pallet block. It extrudes wood pallet block by hot press heating pressure, which uses raw materials mixing with glue in a certain ratio.
  2. The raw materials for wood pallet block machines are wood sawdust and shaving or other scrap woods and other agricultural waste like cotton seeds, shell husks, and so on.
  3. Wood pallet block machine is one of the key parts of the pallet block production line, including wood crusher, wood drying machine, gluing machine, conveyor, manual or automatic cutting machine, or saw.
  4. The final wood pallet block can be used as pallet foot replaced the log, and also can be used in the export package.



Parameters of Single Head Wood Pallet Block Production Line Machines:

Model TYS
Capacity(m3/24h) 2-5
Size(mm) 4800*780*1320
Length and width of the block 75-145 mm
Power(kW) 12-19
Density(kg/m3) 550-600
Weight(kg) 1050-1500
Block size: 75-140 mm in width, 75-140 mm in length. Customized by customers required.

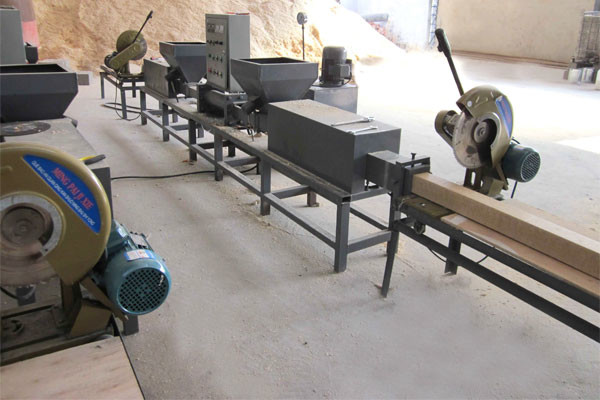

Single Head Wood Pallet Block Production Line Machines 0

Technology Process of Single Head Wood Pallet Block Production Line Machines :

1.Raw material

2.Crushing

3.Drying

4.Mixing with glue

5.Hot pressing

6.Long pallet block

7.Cutting

8.Final block

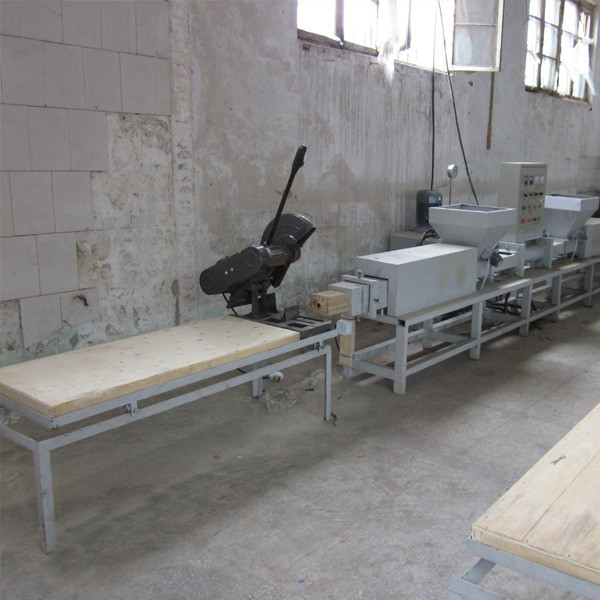

Single Head Wood Pallet Block Production Line Machines 1
Advantages of Single Head Wood Pallet Block Production Line Machines

A. Free fumigation. The block is made by hot pressing, so it is “Export Ready”.

B. It could recycle wood waste efficiently.

C. Easy to operate. One person could handle 3 machines.

D. Saving the production cost and enhancing the process of automation

E. One machine could make two different block sizes.

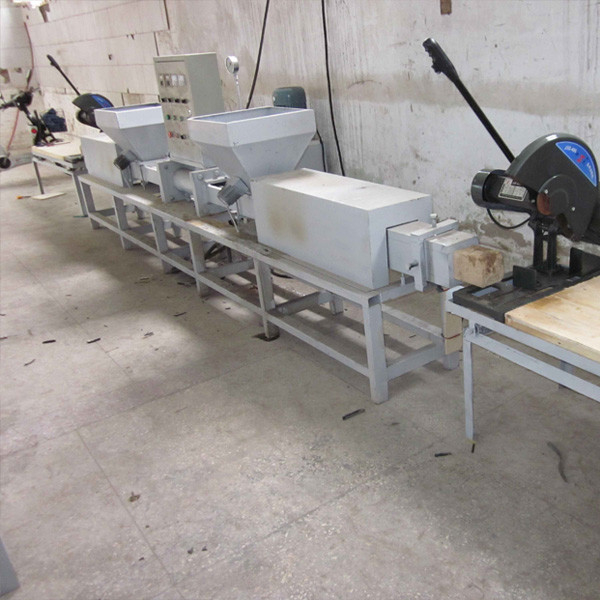

Single Head Wood Pallet Block Production Line Machines 2

Block sizes of customized pallet block machine

Normally 90*90 mm, 90*100 mm, 100*100 mm, 80*90 mm. If you have special requirements, we could customize it while, it ranges from 75 mm to 145 mm.

Single Head Wood Pallet Block Production Line Machines 3



Single Head Wood Pallet Block Production Line Machines 4
