Large Bamboo Wood Chipper

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TYXP-215
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 10-30 working days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 50 sets per month

Detail Information

Product Name: Drum Wood Chipping Machine Feeding Port Size: 160*400 Mm
Knife Quantity: 2-3 Pcs Revolving Speed: 592 R/min
Chip Size: 30 Mm Capacity: 3-5 T/h
High Light:

Large Bamboo Wood Chipper


Bamboo Chipper


Woodworking Bamboo Chipper

Product Description

5 Tons Per Hour Drum Type Wood Chipping Machine For Woodworking

Drum type wood chipping machine is used for processing wood logs or tree branches into 20 mm-40 mm wood chips for various wood products industries and plants.

Drum wood chipper machine belongs to the wood processing equipment series. Drum wood chipping machine is widely used in woodworking factories, furniture factories, wood pallet plants, pallet block production lines, and other wood industrial production factories.

Drum wood chipper is the best equipment for preparing material for molded wood pallet and pallet block production.

Drum Wood Chipper Machine Model Parameters

Drum Wood Chipper Parameters
Model TYXP-215 TYXP-216 TYXP-218 TYXP-2113
Feeding port size (mm) 160*400 230*590 300*680 450*700
Fly-cutter qty (piece) 2-3 2-3 2-3 2-3
Revolving speed (rotate/minute) 592 590 650 500
Feeding raw materials max diameter (mm) 160 230 300 450
Chip size (mm) 30 30 30 38
Production capacity (ton) 3-5 8-10 14-18 15-30
Main motor power(kW) 45 55 90-110 200-250
Feeder power (kW) (2.2-3)*2 (3-4)*2 (4-5.5)*2 7.5*2
Oil pump motor power (kW) 1.5 1.5 1.5 3
Conveyor power (kW) 3 3 4 4
Weight (kg) 2990 5030 7000 11840
Dimension(mm) 1470*1550*970 1800*1900*1210 2200*2150*1500 3670*2517*2050

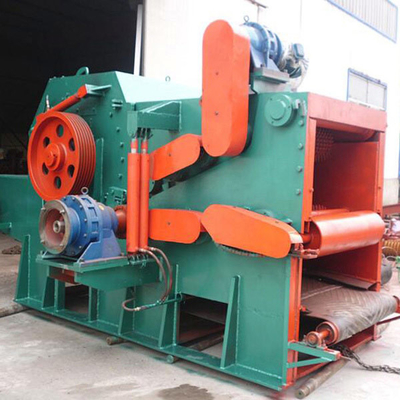

Large Bamboo Wood Chipper 0

Drum wood chipping machine has the advantages of wide application, diversified raw materials, good quality wood chips, safe and reliability, and high production efficiency.

Working Principle of Drum Wood Chipping Machine

Wood materials enter the chipper cavity through the conveyor system and the feeding port. Wood materials are chipped into wood chips under the shearing stress of the high-speed rotating flying knives and the bed knife installed on the machine base. The qualified chips pass through the screen holes below the knife roll and are discharged through the discharging port. A little larger wood chips, which cannot pass through the screen holes, continue to be chipped again.


Large Bamboo Wood Chipper 1

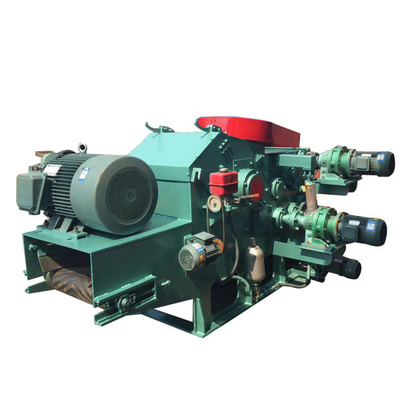

Large Bamboo Wood Chipper 2
