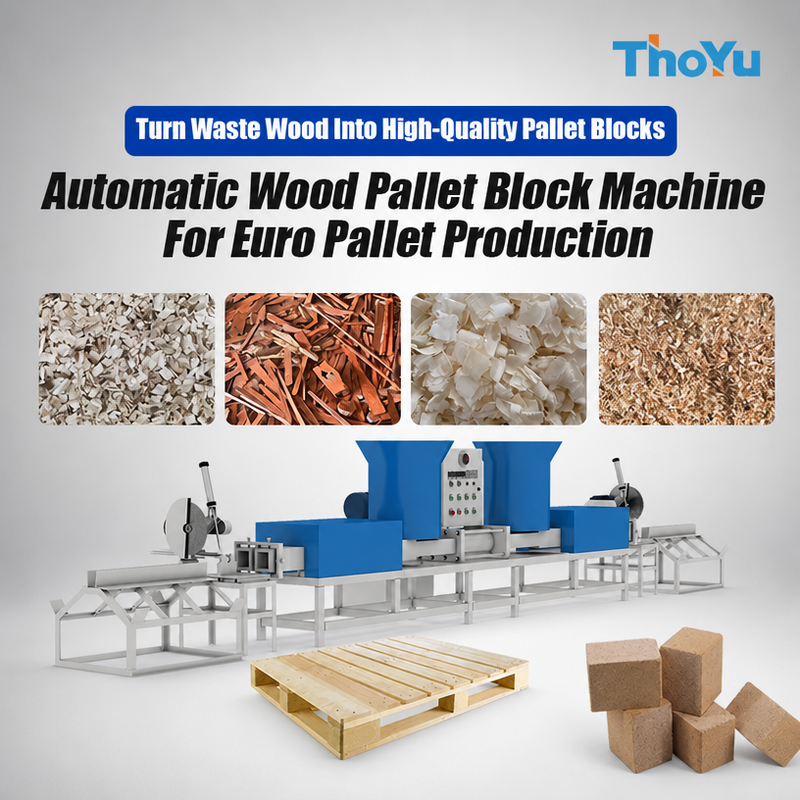

Compressed Sawdust Pallet Block Machine for Block Pallet
Introduction of Compressed Sawdust Pallet Block Machine for Block Pallet
Compressed sawdust pallet block machine for block pallet is used to produce pallet block, which is the main part of block pallet. And compressed sawdust pallet block machine for block pallet could recycle the wood waste efficiently, and it is changing the waste wood into the pallet block, so it helps to protect the environment. The final pallet block could get the E1 grade. The finished pallet block can be solid without a hole in the middle and also can be hollow.
Features of Compressed Sawdust Pallet Block Machine for Block Pallet:
1. Strong bearing capacity, no deformation, and can be reused.
2. Pallet blocks can be used in export package, free fumigation, and free quarantine.
3. Insects prevention and protection against termites and do not easy to burn.
4. Compressed sawdust pallet block machine for block pallet uses hydraulic transmission, horizontal continuous out bags, speed high yield.
5. Compressed sawdust pallet block machine for block pallet is mainly applicable for sawdust, compression moulding material, facilitate their storage, transportation cost.
How does Compressed Sawdust Pallet Block Machine for Block Pallet Work?
1. The hydraulic cylinder provides high pressure and pushes the piston to extrude and mold the materials.
2. The heating of the heating plate at a high temperature promotes the solidification and molding of urea-formaldehyde glue.
3. Cutting according to a certain length (usually around 1.2 meters).
4. After cooling, the compressed sawdust pallet block machine for block pallet cut the long wood strips of half-finished products to the final size.
Parameters of Compressed Sawdust Pallet Block Machine for Block Pallet:
| Model | TYS | TYD | TYT |
| Size (mm) | 4800*780*1320 | 4800*780*1320 | 4800*900*1420 |
| Length and width of block (mm) | 75-145 | ||
| Power (kW) | 16.86 | 22.26 | 30.26 |
| Density (kg/m3) | 550-600 | ||
| Production efficiency (m3/24h) | 2-5 | 3-6 | 5-9 |
| Dimension with saw (mm) | 8000*600*1500 | 8000*700*1500 | 8000*700*1500 |
| Weight (kg) | 1000 | 1500 | 2000 |
| Block size: 75-145 mm in width, 75-145 mm in length. Customized by customers required. | |||
Pallet Block Sizes of Compressed Sawdust Pallet Block Machine for Block Pallet
Normally 90*90 mm, 90*100 mm, 100*100 mm, 80*90 mm, and so on according to the inlet fork height of the forklift. If you have special requirements, we could customize it while it ranges from 75 mm to 145 mm.
