Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-50 working days
Payment Terms : L/C, D/A, T/T Supply Ability : 10 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYYJ-1000

Detail Information

Name: Bamboo Fiber Pallet Manufacturing Machine Type: Pallet Making Machine
Usage: Pallet Industry Raw Material: Plam, Coconut, Bamboo Fiber
Condition: New Power(w): Customized
High Light:

pallet manufacturing machines

,

pallet machine manufacturers

,

pallet manufacturing equipment

Product Description

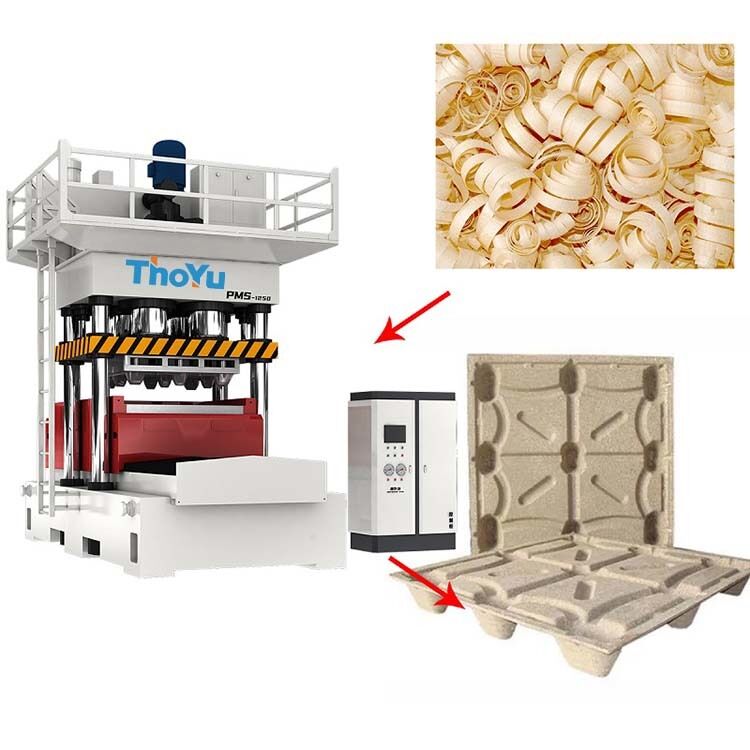

Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine



Introduction of Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine

Compressed wood coconut bamboo fiber pallet manufacturing machine is a new type of one-time forming machine by hot pressing technology, which is different from traditional nailing pallet machine.



Bamboo fiber is a unique biodegradable textile material. As a natural cellulose fiber, it can be 100% biodegraded in soil by microorganisms and sunshine. The decomposition process does not cause any pollution in the environment.



But in the pallet industry, compressed wood coconut bamboo fiber pallet manufacturing machine is a new type of pallet equipment, which is used to produce bamboo fiber pallet, it is a sustainable alternative to existing wood and plastic pallets. And bamboo fiber pallet is also the compressed pallet, which is 100% bio-based. At the same time, it replaces Timber Pallets and also protects the global forest resources. Therefore, bamboo fiber pallet promotes the sustainable development of the world.

Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine 0

Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine Parameters



Bamboo Fiber Pallet Manufacturing Machine
Model TYYJ-1000 TYYJ-1200
Voltage 220 V/380 V, 50 Hz, three-phase 220 V/380 V, 50 Hz, three-phase
Capacity 240 pcs/day (24 hours) 240 pcs/day (24 hours)
Power 18.5 kW 18.5 kW
Hydraulic cylinder diameter 350 mm 380 mm
Hydraulic cylinder quantity 4 pieces 4 pieces
Pressure 0-1000 t (adjustable) 0-1200 t (adjustable)
Shaping cycle 350 seconds 350 seconds
Weight 22 tons 22 tons
Dimension 2000*1400*3500 mm 2000*1400*3500 mm



Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine 1



Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine Process

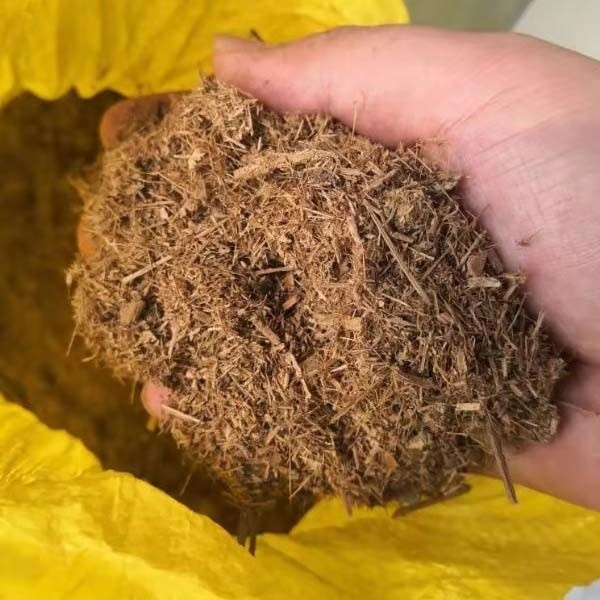

  1. Gather the materials containing bamboo fiber and eliminate the impurities, then crush them into small chips.
  2. Dry the crushed materials to 5% moisture content.
  3. Evenly mix the dried materials with glue according to a certain proportion.
  4. Fill the mixed materials into the mould and press.

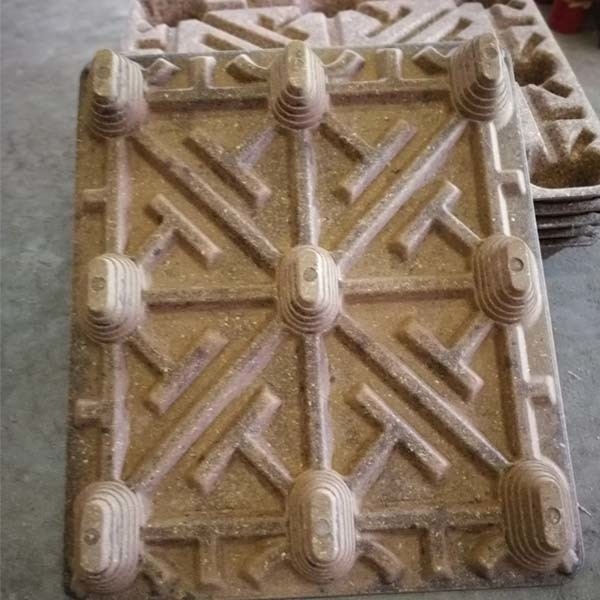

  5. Automatically discharge the final bamboo fiber pallet.

Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine 2



Features of Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine

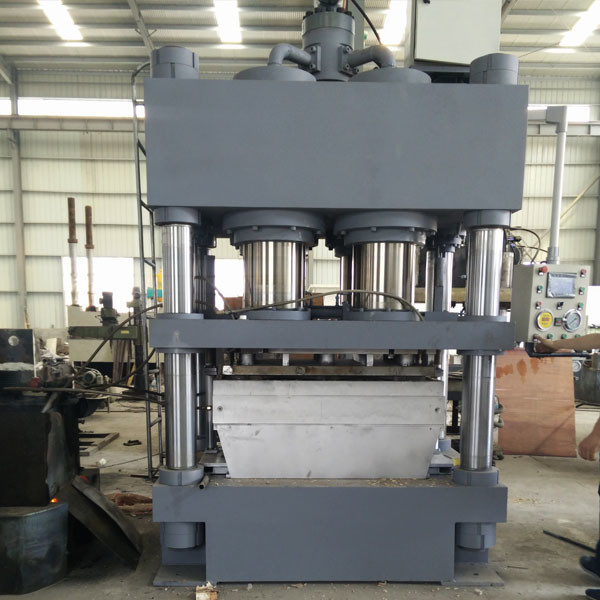

  1. High temperature and high pressure can press the raw materials into pallets one time with standard size, without metal materials in the pallets. Reasonable design of the structure. Compressed wood coconut bamboo fiber pallet manufacturing machine is the three-beam four-column structure, which is the latest type for producing wood composite pallet.
  2. High performance. Compressed wood coconut bamboo fiber pallet manufacturing machine is more efficient than the traditional pallet making machine.
  3. Fully automatic production, we have a fully automatic production solution, the whole process can be operated by only one to two people, saving labor cost and high output.
  4. The raw materials of compressed wood coconut bamboo fiber pallet manufacturing machine are all over the world, and easy to get.
  5. Long service life. Compressed wood coconut bamboo fiber pallet manufacturing machine is assembled with high-quality parts and electronic original parts of famous brands, easy to maintain.



Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine 3
