Molded Pallet Machine
Created with Pixso. Compressed Wood Coconut Fiber Pallet Manufacturing Machine

Compressed Wood Coconut Fiber Pallet Manufacturing Machine

Brand Name: ThoYu
Model Number: TYYJ-1600
MOQ: 1 set
Price: Negotiation
Delivery Time: 15-50 working days
Payment Terms: L/C, D/A, T/T, D/P
Detail Information
Place of Origin:
China
Certification:
CE
Name:
Bamboo Fiber Pallet Manufacturing Machine
Type:
Pallet Making Machine
Usage:
Pallet Industry
Raw Material:
Plam, Coconut
Condition:
New
Power(w):
Customized
Packaging Details:
Strong wooden pallet for global shipping
Supply Ability:
10 sets per month
Highlight:

pallet manufacturing machines

,

pallet machine manufacturers

,

pallet manufacturing equipment

Product Description

Compressed Wood Coconut Fiber Pallet Manufacturing Machine

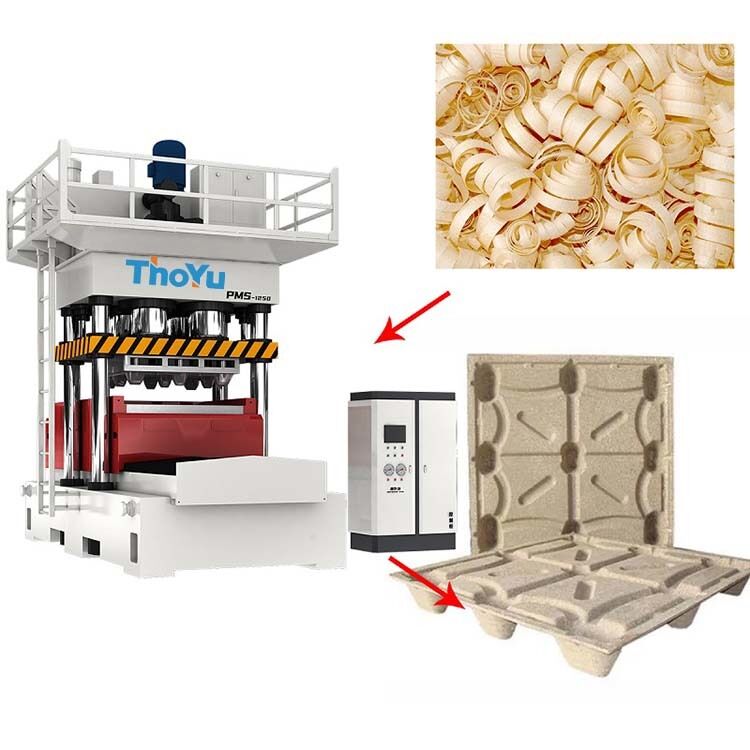

Introduction of Compressed Wood Coconut Fiber Pallet Manufacturing Machine

Compressed wood coconut bamboo fiber pallet manufacturing machine is a new type of one-time forming machine by hot pressing technology, which is different from traditional nailing pallet machine.



But in the pallet industry, compressed wood coconut fiber pallet manufacturing machine is a new type of pallet equipment, which is used to produce bamboo fiber pallet, it is a sustainable alternative to existing wood and plastic pallets. And bamboo fiber pallet is also the compressed pallet, which is 100% bio-based. At the same time, it replaces Timber Pallets and also protects the global forest resources. Therefore, bamboo fiber pallet promotes the sustainable development of the world.

Compressed Wood Coconut  Fiber Pallet Manufacturing Machine

Compressed Wood Coconut Bamboo Fiber Pallet Manufacturing Machine Parameters

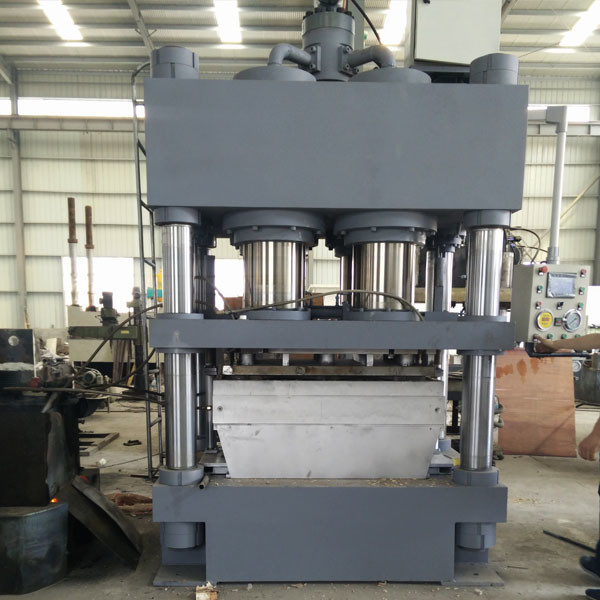

Bamboo Fiber Pallet Manufacturing Machine
Model TYYJ-1600
Voltage 220 V/380 V, 50 Hz, three-phase
Capacity 300pcs/day (24 hours)
Power 18.5 kW
Hydraulic cylinder diameter 350 mm
Hydraulic cylinder quantity 4 pieces
Pressure 1600t (adjustable)
Shaping cycle 350 seconds
Weight 33 tons
Dimension 2000*1400*3500 mm



Compressed Wood Coconut  Fiber Pallet Manufacturing MachineCompressed Wood Coconut  Fiber Pallet Manufacturing MachineCompressed Wood Coconut  Fiber Pallet Manufacturing MachineCompressed Wood Coconut  Fiber Pallet Manufacturing Machine



Compressed Wood Coconut  Fiber Pallet Manufacturing Machine Process

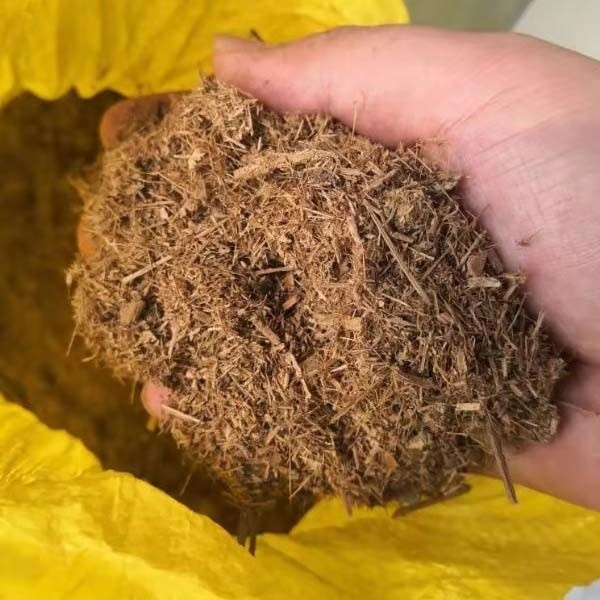

  1. Gather the materials containing bamboo fiber and eliminate the impurities, then crush them into small chips.
  2. Dry the crushed materials to 5% moisture content.
  3. Evenly mix the dried materials with glue according to a certain proportion.
  4. Fill the mixed materials into the mould and press.

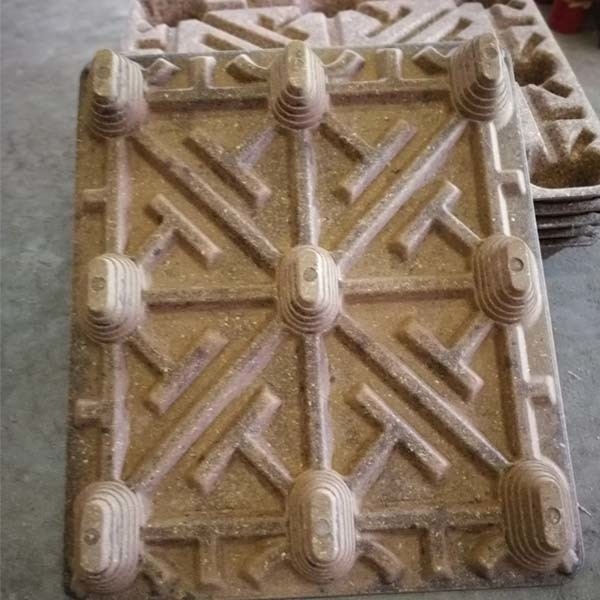

  5. Automatically discharge the final bamboo fiber pallet.

Compressed Wood Coconut  Fiber Pallet Manufacturing MachineCompressed Wood Coconut  Fiber Pallet Manufacturing Machine
