Multilaminate Wood Plank 80*80mm Pallet Block Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 30 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1000DC

Detail Information

Name: Multilaminate Wood Plank Pallet Block Machine Final Product Size: 80*80 Mm
Condition: New Color: Changable
Machining Height: 40-120 Mm Machining Width: 40-120 Mm
High Light:

Wood Plank Pallet Block Machine

,

80mm Pallet Block Machine

,

80mm Pallet Manufacturing Machine

Product Description

Multilaminate Wood Plank Pallet Block Machine

Introduction of Multilaminate Wood Plank Pallet Block Machine


A number of independent core technologies converge on multilaminate wood plank pallet block machine to ensure that the nail depth of each pallet block is consistent, the tension is uniform, and the cutting is smooth. Therefore, we guarantee the high quality of the final pallet block. Multilaminate wood plank pallet block machine from ThoYu engages the advantages of simple process flow, high efficiency, great capacity, and low running expense. At the same time, it also minimizes labor costs.

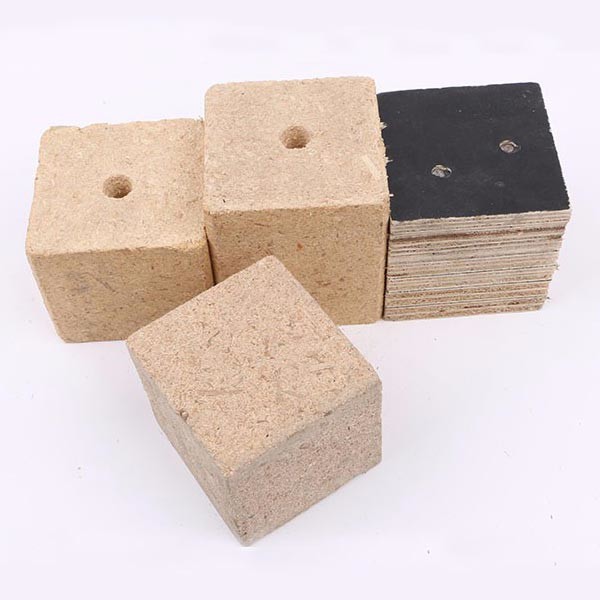

Good Final Multilaminate Wood Plank Pallet Block.


Multilaminate wood plank pallet blocks are made of composite board or plywood, which are cut into the required size, and then are nailed them together. They are also the earliest fumigation-free pallet feet. At present, there are two kinds of raw materials such as a new composite board and leftover material.


Advantages of Multilaminate Wood Plank Pallet Blocks:

  1. Free fumigation.
  2. The load capacity is higher than the sawdust pallet feet.
  3. Smooth appearance after grinding, consistent with the color of the board.
  4. Lower the production cost, because the raw materials are leftover materials.
  5. The customized multilayer plywood pallet blocks are available. Size ranges from 70 *70 mm to 145*145 mm.

 Multilaminate Wood Plank 80*80mm Pallet Block Machine 0
Technical Specifications of Multilaminate Wood Plank Pallet Block Machine

Model TY-1000DC
Capacity 6 m3/8 h
Final product size 75*75 mm~145*145 mm (customized as required)
Machine size 5600*1380*800 mm
Power 3 kW*2+7.5 kW+0.75 kW
Voltage Customized service is available.
Air pressure 0.8 MPa
Machining height 40-120 mm
Machining width 40-120 mm
Worker 1-2 workers
Weight 1200 kg


Characteristics of Multilaminate Wood Plank Pallet Block Machine

1. Serious quality control. ThoYu has a strong capacity for manufacturing and could control product quality seriously with short delivery time. Expert installation and after-sale service team could ensure to finish plant installation and start running of multilaminate wood plank pallet block machine on time.

2. The placement and positioning of raw materials adopt two side clamping boards fixing, to reduce the impact on the product quality due to the displacement of material. The full process of multilaminate wood plank pallet block machine is with one-touch automatic control, smooth operation, stable production, and then continuous operation for a long time.

3. ThoYu has independently developed multilaminate wood plank pallet block machine with the industry-leading technology, which undergone more than one year of technological breakthroughs. The unique technology of multilaminate wood plank pallet block machine ensures the final pallet blocks meet the strict inspection standards.

Multilaminate Wood Plank 80*80mm Pallet Block Machine 1

Features of Multilaminate Wood Plank Pallet Block Machine

1. Copper core motor can run for a long time, low heat.

2. Intelligent CNC, touch screen system, intelligent writing.

3. Brand nail gun, nailing precise and fast.

4. Planing shafts on both sides. High-precision spiral planing shaft, which can plan the height of the pallet block material and control the height of the pallet block.

5. Multilaminate wood plank pallet block machine adopts 4 groups of cylinders, compact structure, uniform pressure, and uniform flatness of template strip.

6. Multilaminate wood plank pallet block machine is with the high-power copper core motor, which is powerful power, long life, and fast running speed.

7. Rubber rolling pulley block, low feeding resistance, smooth sliding, to ensure the error value of the pallet block length.

8. Side backer. Adopt cylinder pre-compression mechanism, the thickness can be adjusted at will, size is convenient and simple.

Multilaminate Wood Plank 80*80mm Pallet Block Machine 2
