Engineered Presswood Pallet Block Machine With Single Head 5m3/24h

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wood pallet for global shipping Delivery Time : 15-40 work days
Payment Terms : L/C, D/A, D/P, Western Union, MoneyGram Supply Ability : 20-40 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYS

Detail Information

Product Name: Engineered Presswood Pallet Block Machine With Single Head Model: TYS
Capacity: 2-5 (m3/24h) Density Of Block: 550-600 (kg/m3)
Power: 12-19 KW Weight: 1050-1500
Dimension: 4800*780*1320 Mm Color: Customizable
Keywords: Presswood Pallet Block Machine,single Head Pallet Block Machine,presswood Block Machine
High Light:

Engineered Presswood Pallet Block Machine

,

Single Head Presswood Pallet Block Machine

,

5m3/24h Presswood Pallet Block Machine

Product Description

Engineered Presswood Pallet Block Machine With Single Head 5m3/24h



Introduction to the Engineered Presswood Pallet Block Machine

Pallet blocks are applied in Euro wood pallets which are full four-way entry pallets because the tines of a pallet jack or forklift can access and lift it from all four sides of the pallet. This wood pallet block machine is developed to produce presswood/engineered wood pallet blocks. It can recycle sawdust, wood shavings, wood chips, wood flakes, and waste wood as raw material. The final product pallet blocks are of high stiffness and strength.



Technical Parameters of the Engineered Presswood Pallet Block Machine

Model TYS
Capacity (m3/24h) 2-5
Density of final pallet block (kg/m3) 550-600
Power (kW) 12-19
Weight (kg) 1050-1500
Size (mm) 4800*780*1320
Block size: 75-140 in width, 75-140 in length. Customized by customer required.

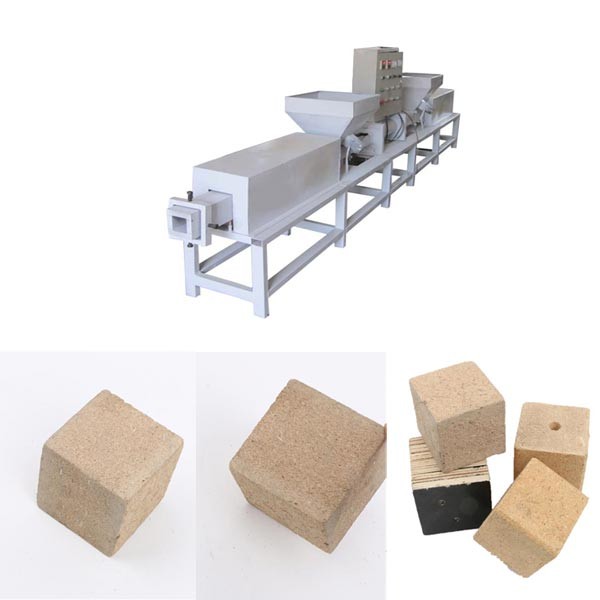

Engineered Presswood Pallet Block Machine With Single Head 5m3/24h 0Engineered Presswood Pallet Block Machine With Single Head 5m3/24h 1

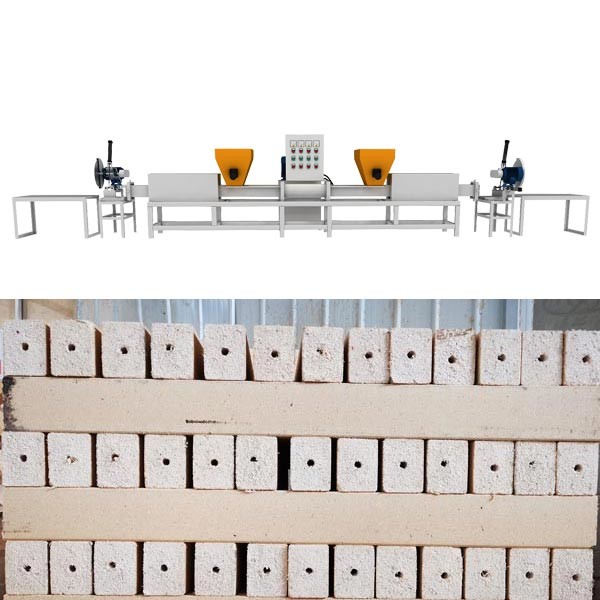

Engineered Presswood Pallet Block Machine With Single Head 5m3/24h 2

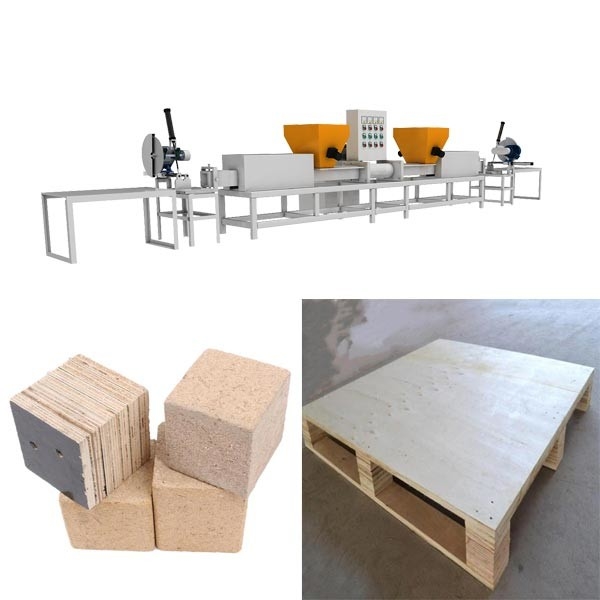

Engineered Presswood Pallet Block Machine With Single Head 5m3/24h 3

Advantages of the Engineered Presswood Pallet Block Machine

1. Resource-saving. This machine uses waste wood as the raw material to make the most use of the resources.

2. The pallet blocks are produced under high temperature and pressure so that they are clean and sanitized without contaminants or insects.

3. The mold of this pallet block machine can be customized according to specific requirements.

4. Highly automated. A saw is equipped with this machine to cut off the block when it reaches a set length.



Company Profile

ThoYu is a professional machine manufacturer with 15 years of experience in China. We specialize in woodworking machines, wood pallet machines, pallet block machines, plastic pallet machines, wood pallet production line, pallet block production line, and plastic pallet production lines.



ThoYu machines are sold well all over the world, such as France, Finland, Spain, Greece, Turkey, Tunisia, Romania, Algeria, UAE, Dubai, Estonia, Ukraine, United States, Canada, Mexico, Colombia, Chile, Argentina, Peru, Egypt, South Africa, Iran, Philippines, India, and Indonesia, and other countries and regions, which are thought highly by our clients.



With the concept of “TO YOU FOR YOU”, we serve clients sincerely and also await win-win cooperation with the clients at home and abroad.



History

2008 ThoYu was founded. In the beginning, we just produced a fruit grading machine, garlic grading machine, and fruit pitting machine.

2009 We joined Alibaba.com and got more and more overseas orders.

2010 For the first time, we sold our wood pallet machine to overseas customers.

2012 We obtained a CE certificate for our wood pallet machine and pallet block machine.

2014 We developed a new presswood pallet machine, which solved the system stability problem of the first generation.

2015 We updated our pressed wood pallet machine, which solved the scope of raw materials problem of the second generation.

2016 We upgraded our compressed wood pallet machine daily capacity problem of the third generation.

2018 Our new big factory in Jiaozuo, China was completed and put into operation. We run a new presswood pallet production line.
