Cyclone Dust Removal Hot Air Flow Wood Chip Dryer Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 25 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYQL-40

Detail Information

Product Name: Hot Air Flow Wood Chip Dryer Machine Main Power: 7.5 KW
Machine Capacity: 900 Kg/h Energy Efficiency Index: 85%
Air Volume Supply: 900 M3/h Raw Materials Moisture: 30%
High Light:

Wood Chip Dryer Machine

,

Hot Air Flow Wood Chip Dryer

,

wood chip drying systems

Product Description

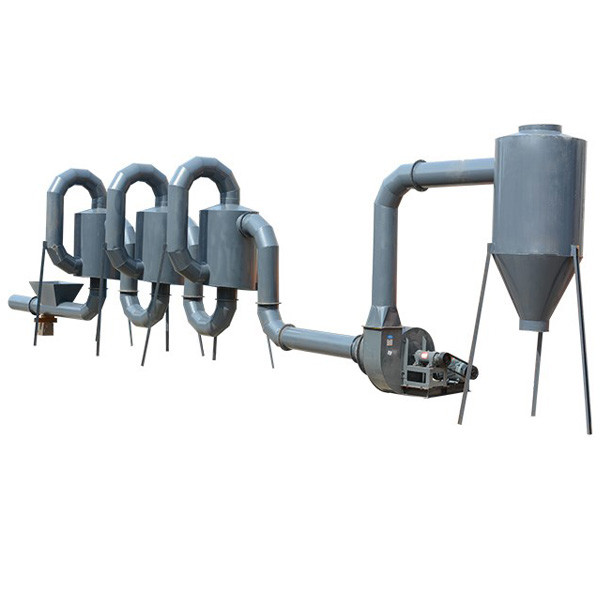

Cyclone Dust Removal Hot Air Flow Wood Chip Dryer Machine



We are a hot air flow wood chip dryer machine manufacturer with more than 20 years of experience. Our products are sold at home and abroad, such as Pakistan, Vietnam, Sudan, India, Russia, America, Africa, UK, Turkey, Malaysia, Thailand, Kenya, Australia, Philippines, etc.



This hot air flow wood chip dryer machine is suitable for drying materials of moisture 20~70%. The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock, and cyclone. This dryer reduces the moisture to 8~12% with the advantages of low cost consumption and high efficiency.



Hot air flow wood chip dryer machine parameters



Air Flow Dryer
Model TYQL-30 TYQL-40
Power (kW) 7.5 7.5
Capacity (kg/h) 800 900
Big pipe diameter (mm) 320 400
Small pipe diameter (mm) 220 320
Pipe thickness (mm) 2 2
Supply air volume (m3/h) 9000 10000
Energy efficiency index 85% 85%
Moisture content of raw materials 20% 30%
Note: customized service is available.



Hot air flow wood chip dryer machine application



sawdust, wood shavings, ore materials less than 20 mm, wet low heat value coal, agriculture material like sawdust, other kinds of industrial material



Working principle of Hot air flow wood chip dryer machine



The heating boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials are finished to dry, and the dried materials are expelled out by the exhaust blower (fan).



Cyclone Dust Removal Hot Air Flow Wood Chip Dryer Machine 0



Hot air flow wood chip dryer machine advantages



  1. The airflow dryer has a high thermal efficiency
  2. The airflow dryer has a wide application range, high output, and large precipitation range;
  3. The structure is simple, the station area is small, and the investment and maintenance costs are low.
