Coconut Fiber Wood Chip Dryer With Automatic Temperature Control

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 10 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYXG2230

Detail Information

Product Name: Coconut Fiber Dryer Machine Usage: Dry Coconut Fiber
Capacity: 0.8-1.0 T/h Raw Material Moisture: 30-45%
Drying Temperature: 100-180℃ Total Weight: 30000 Kg
High Light:

Coconut Fiber Wood Chip Dryer

,

ThoYu Wood Chip Dryer

,

ThoYu wood chip drying systems

Product Description

Coconut Fiber Dryer Machine With Automatic Temperature Control



Coconut fiber dryer machine is widely applicable to straw press block fuel, charcoal machinery, sawdust pellet fuel, sawdust press block, farming and animal husbandry engineering industry, etc.



When drying palm fiber, biomass, sawdust, wood shavings, rice bran, wood chips, coconut fiber and other materials, it is necessary to consider a very important issue, that is, the material in the drying process to avoid burning.



The coconut fiber dryer machine uses multi-tube indirect drying, and the materials are in indirect contact with hot air, which can effectively solve the problem of material burning.



Coconut fiber dryer machine can dry the moisture content of 30-45% coconut fiber, fast drying of moisture content is less than 18% of the finished product. Using wood, straw, nutshell waste (or coal, natural gas, and diesel oil) for energy, we use all kinds of wet material for hot air and instantaneous high temperature for drying process, the host transmits with electromagnetic or frequency control of motor speed and equipped with automatic temperature control device for the process of drying fiber with good color, strength, and flexibility.



Coconut fiber dryer machine parameter



Model Capacity(t/h) Raw Material Moisture(%) Drying Moisture(%) Drying temperature(℃) Total Power(kw) Total Weight(kg) Covering Area
TYXG1416 0.3-0.5 30-45 15-18 100-180 20-35 12000 8m*24m
TYXG1620 0.4-0.6 25-40 18000 8m*30m
TYXG1824 0.5-0.7 30-45 24000 8m*38m
TYXG2230 0.8-1.0 35-50 30000 10m*46m
TYXG2336 1.2-1.5 40-55 38000 10m*50m

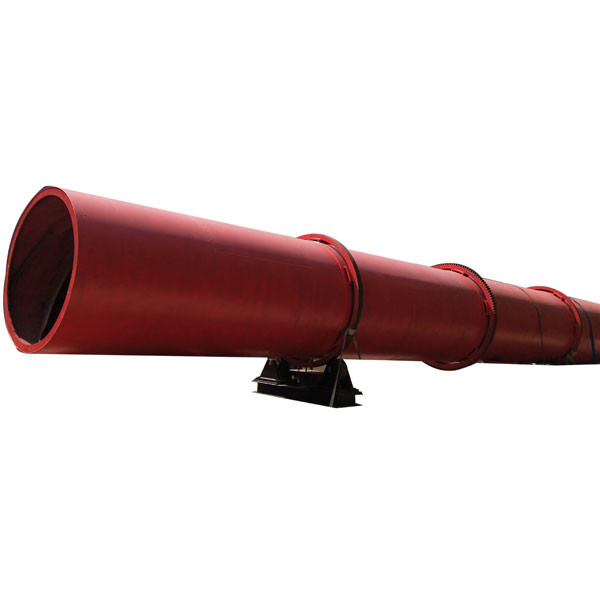

Coconut Fiber Wood Chip Dryer With Automatic Temperature Control 0



Coconut fiber dryer machine features

  1. For the design and manufacture of coconut fiber materials with unique structure, low energy consumption, and high thermal efficiency.
  2. Unique heating mode, controlled heat without flames, the finished fiber color, strength, flexibility remains constant under controlled operational circumstances.
  3. Frequency controlled motor speed and automatic temperature control system is used according to the raw material moisture content and parameters, to achieve the required drying effect.
  4. With the fiber slag cleaning device, shredded coconut fiber is wrapped with furfural slag to refine and separate the pure material with a complete clean drying process, thus the finished fiber is much pure.

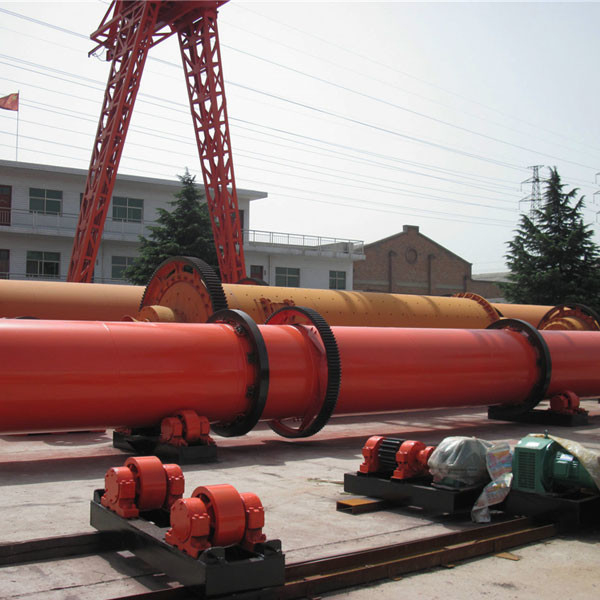

Coconut Fiber Wood Chip Dryer With Automatic Temperature Control 1



Coconut Fiber Wood Chip Dryer With Automatic Temperature Control 2
