Biomass Sawdust Wooden Shavings Wood Chip Dryer Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 25 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYQL-40

Detail Information

Product Name: Biomass Sawdust Hot Air Flow Dryer Power: 7.5 KW
Capacity: 900 Kg/h Big Pipe Diameter: 400 Mm
Supply Air Volume: 900 M3/h Moisture Content Of Raw Materials: 30%
High Light:

Sawdust Wood Chip Dryer Machine

,

Biomass Wood Chip Dryer Machine

,

Wood Chips Drying Production Line

Product Description

Biomass Sawdust Hot Air Flow Dryer Wood Chips Dryer For Sale



Biomass sawdust hot air flow dryer is also called pipe dryer or hot air pulse dryer, which has higher drying efficiency. This air flow dryer is mainly used for biomass pellets production with small capacity. The biomass sawdust hot air flow dryer adopts pulse air drying method to achieve high-speed and high-efficiency drying effects. Suitable for raw materials with moisture content below 40%. After drying, the moisture content can be reduced to 8-12% at one time. Air flow dryers are ideal for powder and small particle materials with a diameter of less than 3mm.



Biomass sawdust hot air flow dryer parameters



Air Flow Dryer
Model TYQL-30 TYQL-40
Power (kW) 7.5 7.5
Capacity (kg/h) 800 900
Big pipe diameter (mm) 320 400
Small pipe diameter (mm) 220 320
Pipe thickness (mm) 2 2
Supply air volume (m3/h) 9000 10000
Energy efficiency index 85% 85%
Moisture content of raw materials 20% 30%
Note: customized service is available.

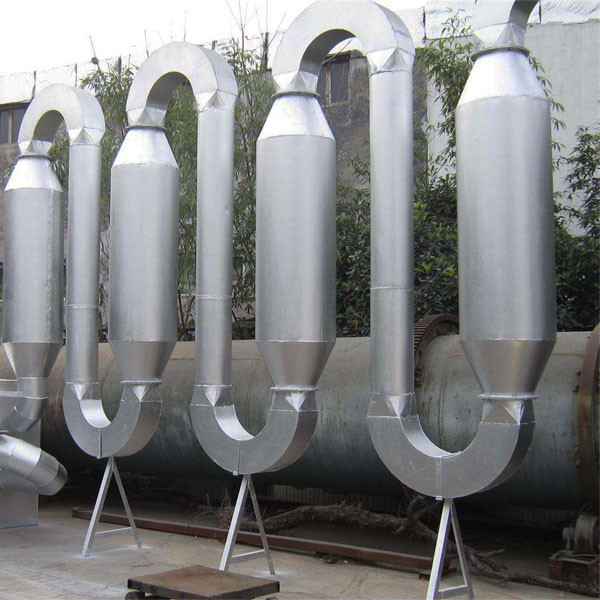

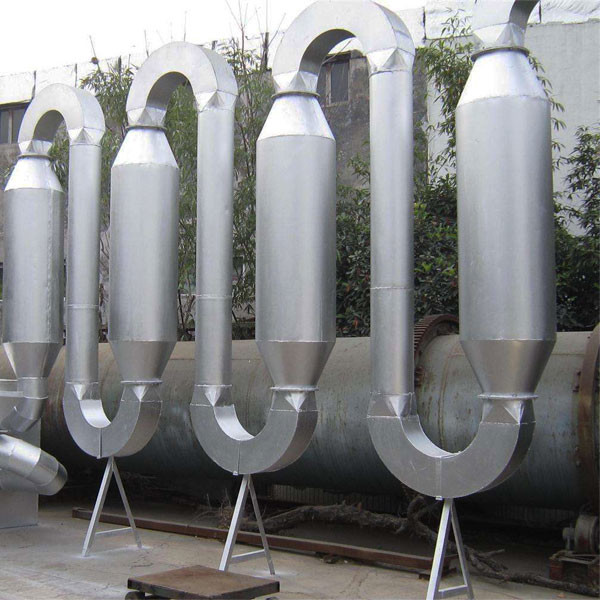

Biomass Sawdust Wooden Shavings Wood Chip Dryer Machine 0



Biomass sawdust hot air flow dryer application



Air flow dryer can process most of the biomass materials (sawdust, crop stems, leaves, grass, etc.), agricultural products (corn straw, soybean straw, cotton stalk, wheat straw, etc.), and chemical products (fertilizer, metal powder, etc.), sugar, Mining products (ore, sand, clay, etc.)


Biomass sawdust hot air flow dryer tips


Before buying a suitable sawdust dryer, you need to understand some technologies, such as the application of biomass materials, drying speed, energy costs, raw material moisture content, space requirements, capacity, etc.
