8000*700*1500mm Moulded Wood Shavings Pallet Making Equipment

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 35 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYS, TYD, TYT

Detail Information

Name: Uniform Size Moulded Wood Shavings Pallet Block Machine Voltage: 220V/380V/440V
Condition: New Automatic: Semi Automatic
Method: Hydraulic Pressure Color: Optional
High Light:

Wood Shavings Pallet Making Equipment

,

Moulded Wood Pallet Making Equipment

,

8000mm Pallet Making Machine

Product Description

Uniform Size Moulded Wood Shavings Pallet Block Machine



Introduction of Uniform Size Moulded Wood Shavings Pallet Block Machine



Uniform size moulded wood shavings pallet block machine is used to make blocks/feet/log for wooden pallets, which can be used in the packing industry and logistics (transportation). And uniform size moulded wood shavings pallet block machine could recycle the wood waste efficiently, and it is changing the waste wood into the pallet block, so it helps to protect the environment. The final pallet block could get the E1 grade. The finished pallet block can be solid without a hole in the middle and also can be hollow.



Raw Materials for Uniform Size Moulded Wood Shavings Pallet Block Machine:

Wood Sawdust, wood shavings, wood chips, waste wood, used pallet and so on, also the glue (Urea formaldehyde resin& UF resin).



Characteristics of Uniform Size Moulded Wood Shavings Pallet Block Machine:

  1. Equipment disposition: Generally four hot pressing is a production line, must provide the dryer, the glueing machine, grinder with each. (dryer, glueing machine, crusher and so on supporting facility customer buys in addition.
  2. Personnel disposition: Production personnel 4-5 person per shift. And raw material sort (screening), drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines).
  3. Production cycle: After confirmation order form and payment advanced payment, 40 super craftsmen ship factory delivery. Our factory is responsible for technical training, and provides the consummation with the post-sale service.

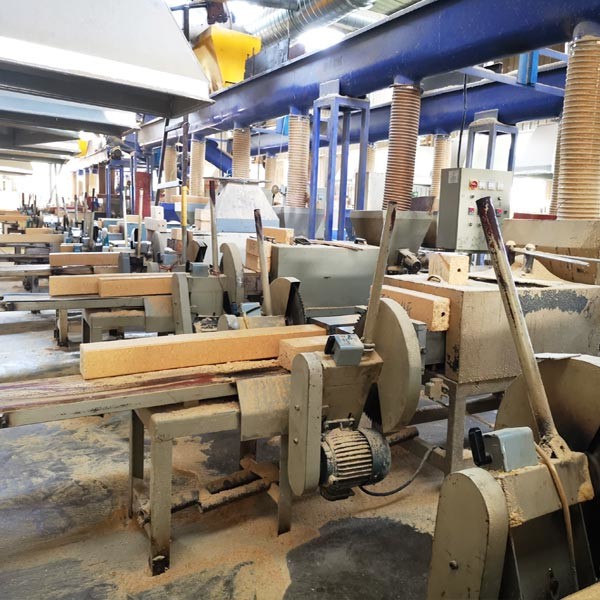

8000*700*1500mm Moulded Wood Shavings Pallet Making Equipment 0

Features of Uniform Size Moulded Wood Shavings Pallet Block Machine:

1. Uniform size moulded wood shavings pallet block machine uses hydraulic transmission, horizontal continuous out bags, speed high yield. Strong bearing capacity, no deformation and can be reused.

2. Pallet blocks can be used in export package, free fumigation, and free quarantine.

3. Insects prevention and protection against termites and do not easy to burn.

4. Uniform size moulded wood shavings pallet block machine is mainly applicable for sawdust, compression moulding material, facilitate their storage, transportation cost.



Parameters of Uniform Size Moulded Wood Shavings Pallet Block Machine

Model TYS TYD TYT
Size (mm) 4800*780*1320 4800*780*1320 4800*900*1420
Length and width of block (mm) 75-145
Power (kW) 16.86 22.26 30.26
Density (kg/m3) 550-600
Production efficiency (m3/24h) 2-5 3-6 5-9
Dimension with saw (mm) 8000*600*1500 8000*700*1500 8000*700*1500
Weight (kg) 1000 1500 2000
Block size: 75-145 mm in width, 75-145 mm in length. Customized by customers required.

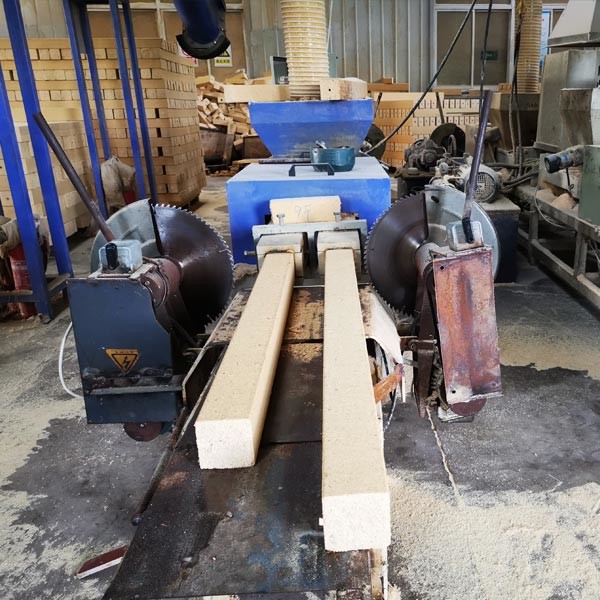

8000*700*1500mm Moulded Wood Shavings Pallet Making Equipment 1

Advantages of Uniform Size Moulded Wood Shavings Pallet Block Machine

  1. Free fumigation. The block is made by hot pressing, so it is “Export Ready”. Uniform Size Moulded Wood Shavings Pallet Block Machine could recycle the wood waste efficiently. And Uniform Size Moulded Wood Shavings Pallet Block Machine is changing the waste wood into wood pallet blocks, so it helps to protect the environment.
  2. Easy to operate. One person could handle 3 machines. One set of Uniform Size Moulded Wood Shavings Pallet Block Machine could make two different block sizes.

Pallet block sizes of uniform size moulded wood shavings pallet block machine

Normally 90*90 mm, 90*100 mm, 100*100 mm, 80*90 mm, and so on according to the inlet fork height of the forklift. If you have special requirements, we could customize it while it ranges from 75 mm to 145 mm.

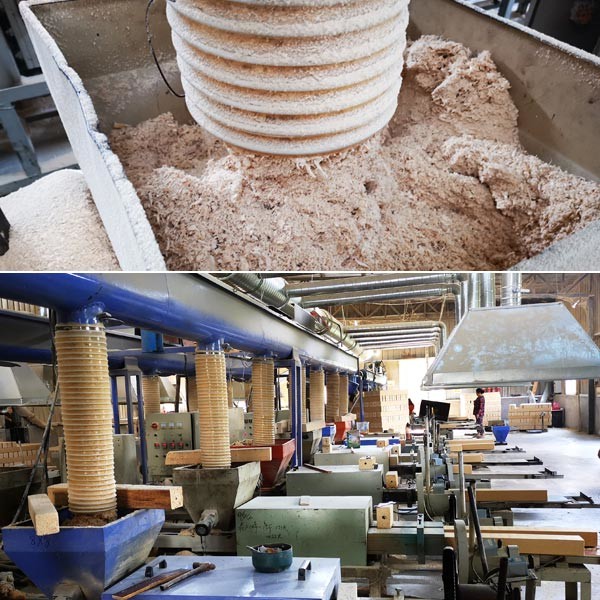

8000*700*1500mm Moulded Wood Shavings Pallet Making Equipment 2

Final compressed pallet blocks

1. Uniform dimensions
Each block is individually weighed and moulded, which ensures a high level of dimension uniformity.

2. No cracking
Moulded blocks minimize the risk of cracked blocks during pallet production.

3. Smooth surface
Our blocks have completely smooth surfaces, which is optimal for stamping or branding.

8000*700*1500mm Moulded Wood Shavings Pallet Making Equipment 3
