Italy Double Head Sawdust Wood Square Pallet Blocks Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 30 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYD

Detail Information

Item: Italy Double Head Sawdust Wood Square Pallet Blocks Machine Capacity: 3-6 M3/24h
Overall Dimensions: 4800*780*1320 Mm Power: 12-19 KW
Block Size: According To Your Demand Keywords: Square Pallet Blocks Machine, Wood Square Blocks Machine, Sawdust Square Blocks Machine
High Light:

Sawdust Wood Pallet Block Machine

,

3m3/24h Pallet Block Machine

,

Pressing Sawdust Pallet Block Machine

Product Description

Italy Double Head Sawdust Wood Square Pallet Blocks Machine



Introduction of Italy Double Head Sawdust Wood Square Pallet Blocks Machine

Italy Double Head Sawdust Wood Square Pallet Blocks Machine is specially designed for pressing sawdust, wood shavings, and other wood scraps into pallet blocks by heating and extruding system.

Italy Double Head Sawdust Wood Square Pallet Blocks Machine could recycle the wood waste efficiently, and it is changing the waste wood into the pallet block, so it helps to protect the environment. The final pallet block could get the E1 grade. The pallet blocks have the characteristics of smooth surface, water proof, and durability. The finished pallet block can be solid without a hole in the middle and also can be hollow.

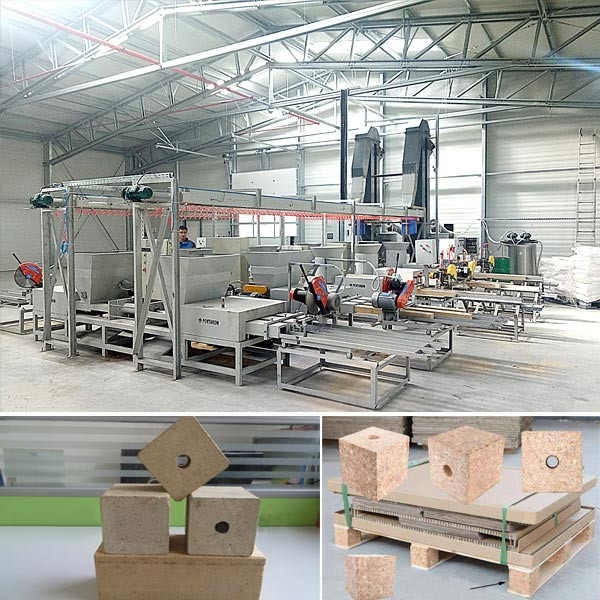

Italy Double Head Sawdust Wood Square Pallet Blocks Machine 0

Features of Final Sawdust Pallet Blocks

Free fumigation and free quarantine.

The size of the final sawdust pallet block can be customized, and the size ranges from 75*75-145*145 mm, and 90*90 mm, 80*90 mm, and 100*100 mm are the common styles.

Technical Parameters of Italy Double Head Sawdust Wood Square Pallet Blocks Machine

Model TYD
Capacity(m3/24h) 3-6
Size(mm) 4800*780*1320
Length and width of block(mm) 75-145
Power(kW) 12-19
Density(kg/m3) 550-600
Weight(kg) 1050-1500
Block size: 75-140 mm in width, 75-140 mm in length. Customized by customer required.

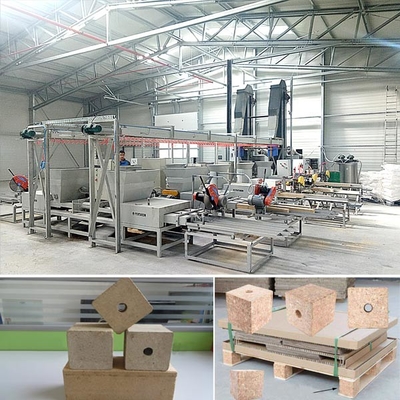

Italy Double Head Sawdust Wood Square Pallet Blocks Machine 1

Technology Process of Italy Double Head Sawdust Wood Square Pallet Blocks Machine

Italy Double Head Sawdust Wood Square Pallet Blocks Machine is crucial in the pallet block/feet/leg manufacturing. There are five main sections in the whole process of pallet block making machine line.

1. Crushing section: Wood crusher will crush all the wood materials into the proper size.

2. Drying section: Material moisture content will be reduced at 8-12%, we have an airflow dryer or rotary dryer as an option.

3. Mixing section: Special designed mixing device can get the uniform blended material.

4. Hot pressing section: The blended material will be fed into the feeding port of the press machine and get the extruded blocks with high-strength. There is no limit on the block length, but generally, it will be cut into 1 meter or 1.2 meters in this stop.

5. Pallet block cutting section: Cutting the 1 m/1.2 m pallet blocks into the required size by pallet block cutting machine or by hand.

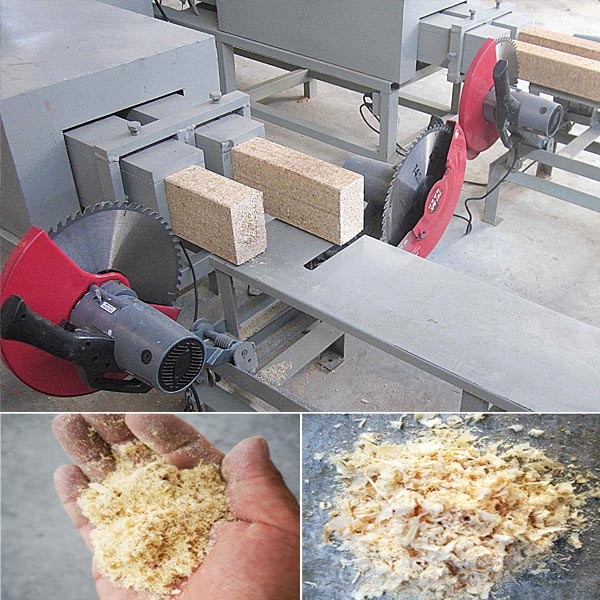

Italy Double Head Sawdust Wood Square Pallet Blocks Machine 2

Advantages of Italy Double Head Sawdust Wood Square Pallet Blocks Machine:

Raw material application: Small logs, tree branches, sawdust, wood chips, timber residue, log off-cuts, plywood trimmings, old board, and so on.

Pallet block density: 550-650 kg/m³

Pallet block features: Free fumigation, water-proof, high nail holding ability, formaldehyde release conform to the national standard, and eco-friendly.

NOTE: We supply both Italy Double Head Sawdust Wood Square Pallet Blocks Machine and the complete sawdust pallet block press production line.

Italy Double Head Sawdust Wood Square Pallet Blocks Machine is easy to operate, and 1 person can look after 3 working machines. Just set the parameters of Italy Double Head Sawdust Wood Square Pallet Blocks Machine and feeding raw mixed materials, then waiting for the out pallet blocks.

Italy Double Head Sawdust Wood Square Pallet Blocks Machine could recycle the wood waste efficiently, and it is changing the waste wood into the pallet block, so it helps to protect the environment. The final wood pallet block can be used as pallet and foot pier replaced log, also can be used in the export package. The final products of Italy Double Head Sawdust Wood Square Pallet Blocks Machine are pressed pallet blocks, and they have a smooth and beautiful surface.

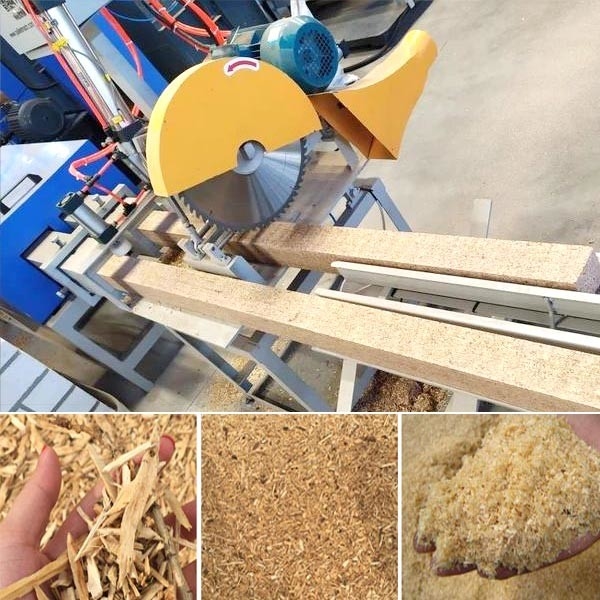

Italy Double Head Sawdust Wood Square Pallet Blocks Machine 3
