Waste Kraft Paper Pressed Wood Pallet Machine With Double Moulds

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-50 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 10 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYYJSM-1200

Detail Information

Name: Waste Kraft Paper Pressed Wood Pallet Machine With Double Moulds Weight: 30 Tons
After-sales Service Provided: Engineers Available To Service Machinery Overseas Condition: New
Raw Material: Waste Kraft Paper Type: Automatic / Manual
High Light:

pressed wood pallet machine

,

waste wood pallet machine

,

kraft paper pallet machine

Product Description

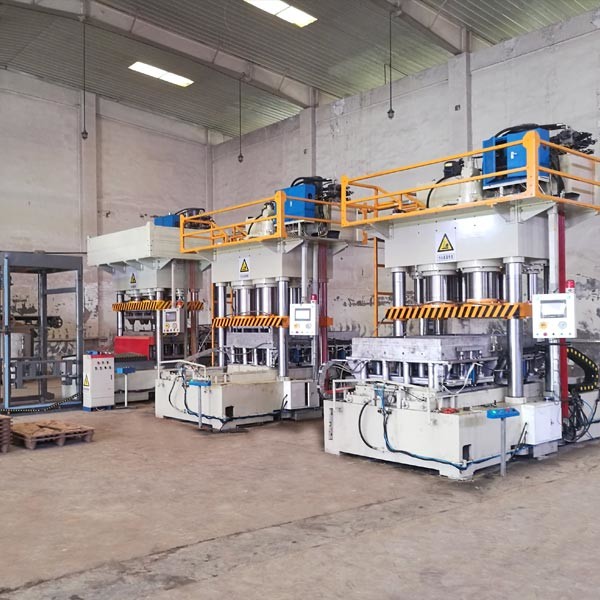

Waste Kraft Paper Pressed Wood Pallet Machine With Double Moulds



Introduction of Waste Kraft Paper Pressed Wood Pallet Machine With Double Moulds

Waste kraft paper pressed wood pallet machine with double moulds is a moulding pallet machine researched and developed by our factory, the moulding machine is noiseless and pollution-free. Waste kraft paper pressed wood pallet machine with double moulds is the ideal equipment for moulding pallet production. After many years of production practice, waste kraft paper pressed wood pallet machine with double moulds has proved its energy-saving, good stability, high production efficiency. The heating method of waste kraft paper pressed wood pallet machine with double moulds is heat-conducting oil, steam, according to various pallet specifications can be designed to replace the touch with easy installation. Waste kraft paper pressed wood pallet machine with double moulds occupies an area of small, placed on the site can be used.



Waste kraft paper pressed wood pallet machine with double moulds has a reasonable design structure, adopts four-way synchronous positioning, precise balance of clamping, fast pressurization with liquid filling. Waste kraft paper pressed wood pallet machine with double moulds can be fully pressurized in 30 seconds, convenient and simple operation, just lay the wood chips flat in the processing touch tool. Just pressing the work button, Waste kraft paper pressed wood pallet machine with double moulds can automatically complete the whole process of pressing, limiting pressure, lowering pressure, holding pressure, timing, unloading, demoulding, and lifting in place. The time for processing a pallet holding pressure curing is about 350 seconds, a moulding machine can process about 240 pieces of pallets in 24 hours. The finished pressed wood pallets are beautiful in appearance, available for small specification production needs, and can also be equipped with multiple machines for processing.

Waste Kraft Paper Pressed Wood Pallet Machine With Double Moulds 0

Waste Kraft Paper Pressed Wood Pallet Machine With Double Moulds Parameters

Kraft paper wood pallet moulding machine
Model TYYJ-1200
Voltage customized
Capacity 240 pieces/day (24 hours)
Power 22 kW
Hydraulic cylinder diameter 350 mm
Hydraulic cylinder quantity 4 pieces
Pressure 0-1200 tons (adjustable)
Shaping cycle 300 seconds
Weight 30 tons
Dimension 4200*2200*3500 mm
Remarks: it includes two sets of normal mould along with one set machine.



Waste Kraft Paper Pressed Wood Pallet Machine With Double Moulds 1



How to Reuse Materials to Produce Pressed Pallet?



Materials -> Chip to big chips -> Crush to small chips -> Dry to reduce moisture -> Mix materials with glue -> Press with high temperature and high pressure -> Demoulding ( automatic ) -> Deflashing -> Inspection, packing and stroage



Waste Kraft Paper Pressed Wood Pallet Machine With Double Moulds 2



Pressed Pallet Advantages

  1. Low pallet production cost. The pallet can be formed in a single operation, with low raw material costs, few production processes, high output, and fully automated production.
  2. Can be nested to save storage and transportation space. The height of 50 pallets is less than 2 meters.
  3. High strength, and four-sided forks. The design of the bottom of the pressed pallet conforms to standards, with reinforcement to ensure its load-bearing capacity, four forks, and suitable for standardized operation of forklifts.
  4. Green and reusable. Making full use of building templates, waste wood, and other long-fiber materials, it can replace traditional solid wood pallets, to reduce wood felling and realize the recycling of wood resources.



Waste Kraft Paper Pressed Wood Pallet Machine With Double Moulds 3
