Wood Pallets Notching Machine Pallet Notcher For American Pallet

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TH-1800KC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 15-45 work days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 36 sets per month

Detail Information

Name: Wood Pallets Notching Machine Pallet Notcher For American Pallet Worker Needed: 1-2 Person
Tolerance: ≤1 Mm Control System: Siemens PLC
Cutter Type: Indexable Slot Depth: 30-50 Mm
Slot Width: 200-230 Mm Weight: 860 Kg
Keywords: Wood Pallets Notching Machine, Pallets Notcher Machine, Pallets Notching Machine
High Light:

Pallets Wood Notching Machine

,

2000mm Wood Notching Machine

,

2000mm pallet notching machine

Product Description

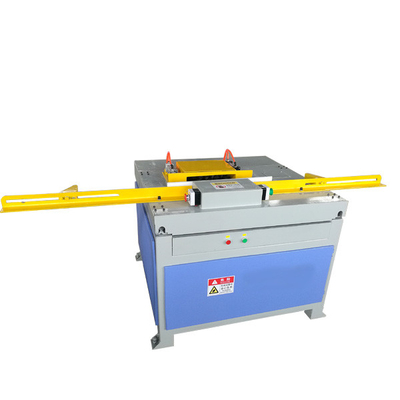

Wood Pallets Notching Machine Pallet Notcher For American Pallet



Introduction of Wood Pallets Notching Machine Pallet Notcher For American Pallet



Wood Pallets Notching Machine Pallet Notcher For American Pallet is suitable for different notching sizes, it also can be customized by customer demands.

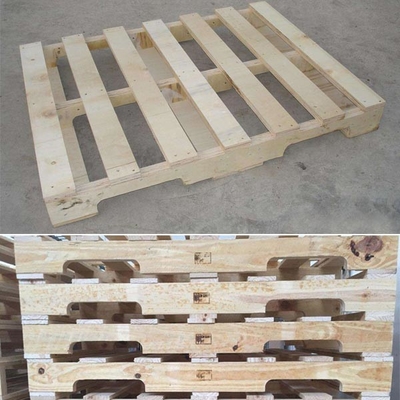

Wood Pallets Notching Machine Pallet Notcher For American Pallet is a special process for American wood pallet processing, which can use fork from four directions by forklift, becomes popular pallet type in the world.



Technical Parameters of Wood Pallets Notching Machine Pallet Notcher For American Pallet

Wood Pallets Notching Machine Pallet Notcher For American Pallet
Model TH-1800KC
Capacity 1800 pieces/hour
Motor power 22 kW
Overall dimension 2000*1200*1600 mm
Stringer length ≤1400 mm
Stringer width 90 mm
Stringer thickness 40-60 mm
Slot depth 30-50 mm
Slot width 200-230 mm
Weight 860 kg

Wood Pallets Notching Machine Pallet Notcher For American Pallet 0

Features of Wood Pallets Notching Machine Pallet Notcher For American Pallet

  1. The knife of Wood Pallets Notching Machine Pallet Notcher For American Pallet adopts hard alloy material, with high hardness, wear resistance, good strength and toughness, heat resistance, corrosion resistance, and a series of excellent performance, so as to ensure the long-term use of the machine performance.
  2. Continuous feeding and automatic discharging platform, Wood Pallets Notching Machine Pallet Notcher For American Pallet can double slot opened at the same time, the excavated area smooth without coarse, standard size, high precision, the depth and width of the groove sizes can be adjusted.

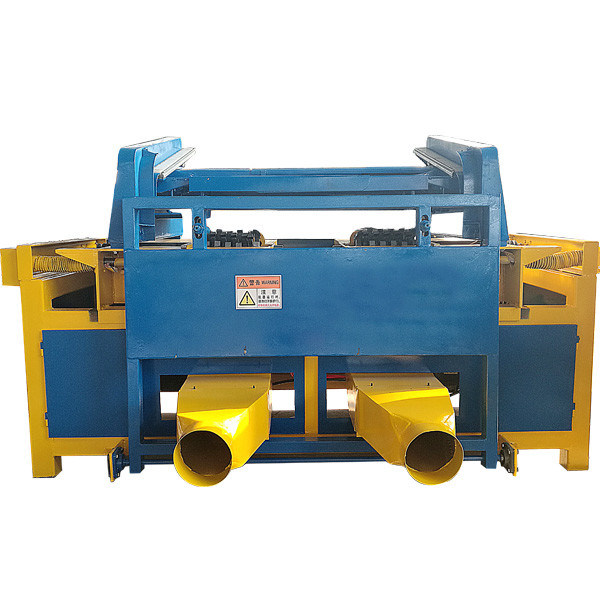

Wood Pallets Notching Machine Pallet Notcher For American Pallet 1

Advantages of Wood Pallets Notching Machine Pallet Notcher For American Pallet

  1. Safety. Do not touch the knife when working.
  2. High efficiency and can operate easily.
  3. Durable and energy-saving.
  4. Heads adjust with a hand crank for quick setup.
  5. Easy access hood for all adjustments.
  6. Air-operated feed system for easy operation.
  7. Starters for notching heads
  8. Control circuit transformer
  9. Emergency stop and start-stop buttons
  10. Flexibility: Electrical requirements to fit your application
  11. Only need one worker to operate.
  12. Indexable cutter long life, safety for the operator, low working strength.





Wood Pallets Notching Machine Pallet Notcher For American Pallet 2



Wood Pallets Notching Machine Pallet Notcher For American Pallet 3
