|Place of Origin:||China|
|Model Number:||TYS, TYD, TYT|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Strong wooden pallet for global shipping|
|Delivery Time:||15-45 work days|
|Payment Terms:||L/C, D/A, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Name:||Sawdust Pressed Wood Pallet Block Production Line Machine||Condition:||New|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Color:||As Per Your Request|
|Capacity(m3/24h):||5-9||Keywords:||Sawdust Pallet Block Machine, Wood Block Production Line, Wood Pallet Block Machine|
Pressed Sawdust Block Press Machine,
22.26kw Sawdust Block Press Machine,
ThoYu sawdust block making machine

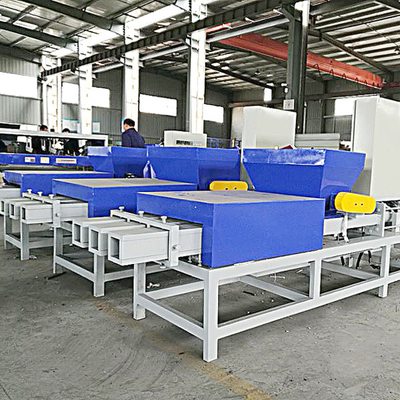

Sawdust Pressed Wood Pallet Block Production Line Machine
Introduction of Sawdust Pressed Wood Pallet Block Production Line Machine:
Sawdust Pressed Wood Pallet Block Production Line Machine is the machine of producing raw materials into pressed pallet blocks. The final pallet blocks can be used in the packing industry, warehousing industry, and logistics industry. The pallet blocks have the characteristics of smooth surface, waterproof, and durability.
There are three types of Sawdust Pressed Wood Pallet Block Production Line Machine: single-head wood pallet block machine, double-head wood pallet block machine, and triple-head wood pallet block machine.
Parameters of Sawdust Pressed Wood Pallet Block Production Line Machine:
|Length and width of block (mm)||75-145|
|Production efficiency (m3/24h)||2-5||3-6||5-9|
|Dimension with saw (mm)||8000*600*1500||8000*700*1500||8000*700*1500|
|Customized service is available.|
Technology Process of Sawdust Pressed Wood Pallet Block Production Line Machine:
There are four main sections in the whole process of the Sawdust Pressed Wood Pallet Block Production Line Machine.
1. Raw material preparation section
Chipping, crushing, and drying the raw material to prepare the following section. The raw materials are 5 mm in the length, 5 mm in the width, 200 mm in the height, and the moisture content is less than 12%.
2. Mixing glue section
Mixing the dried materials with glue evenly.
3. Extruding section
Sawdust pressed block machine extrudes the long wood strips of half-finished products with high pressure and high temperature.

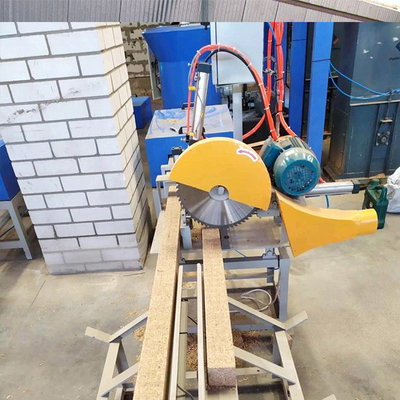

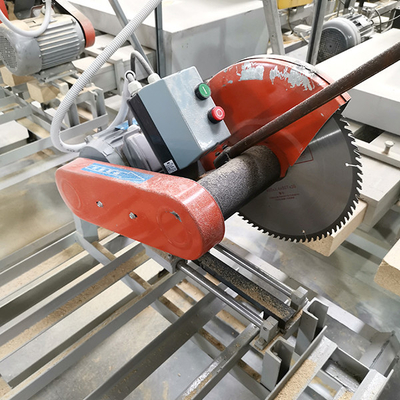

4. Cutting section. The pressed block cutting machine cuts the long half-finished into the final size block.
Advantages of Sawdust Pressed Wood Pallet Block Production Line Machine:
1. Simple machine, and easy operation.
One person could handle 3 machines. What’s more, the automatic sawdust pressed wood pallet block production is also available.
2. High efficiency.
The capacity of Sawdust Pressed Wood Pallet Block Production Line Machine is more than 1200 pieces per hour. The cross-section is completely vertical, reducing the previous cutting loss.
3. Low investment cost.
The raw materials for Sawdust Pressed Wood Pallet Block Production Line Machines are very cheap, even free, so as to reduce the investment cost.
4. Environment friendly.
Sawdust Pressed Wood Pallet Block Production Line Machine could recycle the wood waste efficiently, which helps to dispose of wood waste and protect the forests and the logs.
5. Free fumigation.
The pallet block is made by hot pressing, so it is free of fumigation. And the blocks are ready to export. It not only can reduce the money of customs clearance, but also can save time for export.
6. Customized service.
The customized molds are available. In addition, one machine could make two different sizes of pallet blocks.
The Final Pressed Wood Pallet Block
The pallet pressed block size can be customized, and the size ranges from 75*75-145*145 mm, and 90*90 mm and 100*100 mm are the common styles.
The blocks can have one hole in the center or without a hole. The pressed block is made with high waterproof performance, and without break in the water for 48 hours.
Features of Pressed Wood Pallet Block
1. Free fumigation and free quarantine.
2. Insect prevention, protection against termites and do not easy to burn.
3. Uniform heating, thorough glue curing, high density, meeting the E1 grade.
4. Smooth and clean surface, good waterproof performance.
5. Large load capacity, and easy to nail.
6. Customized sizes are available.
