Yard Max Feeding 350 Mm Small Wood Chipper Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 25 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYDX-800

Detail Information

Product Name: Small Disk Wood Chipping Machine Max Feeding Diameter: 190 Mm
Power Type: Electric Or Diesel Capacity: 3-5 T/h
Overall Weight: 1680 Kg Overall Dimensions: 1800*700*1200 Mm
High Light:

Small Wood Chipper Machine

,

Yard Wood Chipper Machine

,

Small Chipper Shredder

Product Description

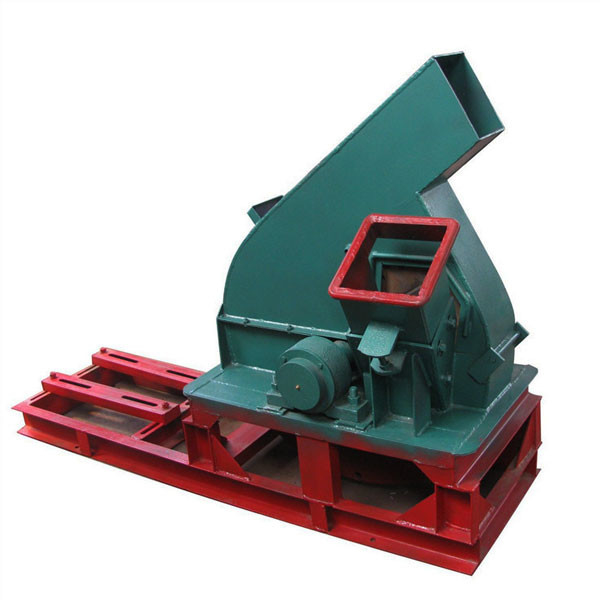

Max Feeding Diameter 350 Mm Small Disk Wood Chipping Machine



Small disk wood chipping machine cut logs, small-diameter wood, and branch wood with a diameter of less than 350 mm. It is suitable for pulp mills, wood yards, paper mills, and wood chip factories. It also can process pine wood, miscellaneous wood, Poplar, raw bamboo, etc.



Wood chipping machine as its different mechanical structure can be divided into two kinds: one is disc chipper, another one is drum chipper. the small disk wood chipping machine has three types for different materials feeding way and oblique mouth feeding.



Due to its compact structure, small footprint, good chipping quality, low power consumption, and suitable for mobile operations, the small disk wood chipping machine is widely used in the preparation section of small and medium-sized particleboard and fiberboard production enterprises, and can also be used for Self-employed individuals produce commercial wood chips.



Small disk wood chipping machine parameters



Small disk wood chipping machine
Model TYDX-800 TYDX-1000 TYDX-1200 TYDX-1400
Capacity (t/h) 3-5 4-6 6-8 8-10
Main power (kW) 30 37 45 55-75
Cutter diameter (mm) 800 1000 1200 1400
Feeding port size (mm) 200*200 300*320 330*350 360*370
Max feed diameter (mm) Φ190 Φ290 Φ330 Φ350
Total weight (kg) 1680 2720 3560 4120
Dimensions (mm) 1800*700*1200 2100*1000*1300 2200*1200*1850 2600*1300*1900



Yard Max Feeding 350 Mm Small Wood Chipper Machine 0

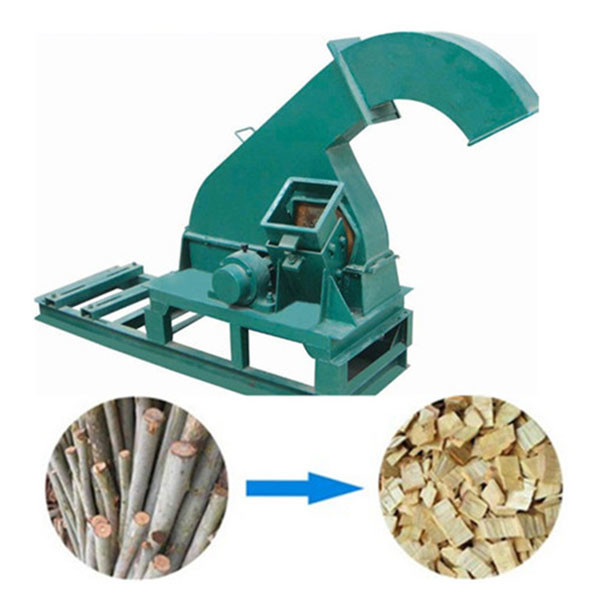

Working principle of small disk wood chipping machine



The working process of our wood chipper is very simple, when the wood feed into the machine mouth, it contact with the cutting blades, along with the high speed rotation cutting knife plate wood has been cut into small pieces in the machine working room. Then the final chips flow out of the machine at high speed from the export mouth, it is very easy and safe to operate.



Yard Max Feeding 350 Mm Small Wood Chipper Machine 1



Features of small disk wood chipping machine

  1. This disc wood chipper is with compact structure, rational layout, convenient installation, it is at high production capacity and low consumption.
  2. The final chips are with high quality, length or thickness is consistent and neat. What is more, the product thickness and length can adjust as per your need!
  3. This small disk wood chipping machine is at different capacity can meet different customer demands, you can choose the suitable one as per your demand of the machine capacity and your materials situation.
