Hydraulic Press Crush Tree Timber Log Wood Chipper Shredder Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYXP-218

Detail Information

Product Name: Wood Chipper Shredder Machine Type: Wood Chipper
Application: Agriculture Machinery & Equipment Raw Material: Tree Branch Etc.
Condition: New Use: Chipping Wood
High Light:

wood chipper shredder machine

,

Log Chipper Shredder Machine

,

Timber Chipper Shredder

Product Description

Hydraulic Press Crush Timber Log Wood Chipper Shredder Machine



Wood chipper shredder machine is one special equipment to produce high quality wood chips. It is widely used to make the flake board, fiber board, building board, straw powder plant.



The Wood chipper shredder machine is of compact structure, easy operation, high capacity, wide raw materials adaptability, high quality, safe and reliable, convenient maintenance.



Wood chipper shredder machine is composed of base, blade roller, upper and down (below) feeding system, feeding equipment, hydraulic press crushing system, and electric control system.



Wood chipper shredder machine parameters



Drum wood chipper machine
Model TYXP-215 TYXP-216 TYXP-218 TYXP-2113
Feeding port size (mm) 160*400 230*590 300*680 450*700
Fly-cutter qty (piece) 2-3 2-3 2-3 2-3
Revolving speed (rotate/minute) 592 590 650 500
Feeding raw materials max diameter (mm) 160 230 300 450
Chip size (mm) 30 30 30 38
Production capacity (ton) 3-5 8-10 14-18 15-30
Main motor power( kW) 45 55 90-110 200-250
Feeder power (kW) (2.2-3)*2 (3-4)*2 (4-5.5)*2 7.5*2
Oil pump motor power (kW) 1.5 1.5 1.5 3
Conveyor power (kW) 3 3 4 4
Weight (kg) 2990 5030 7000 11840
Dimension(mm) 1470*1550*970 1800*1900*1210 2200*2150*1500 3670*2517*2050

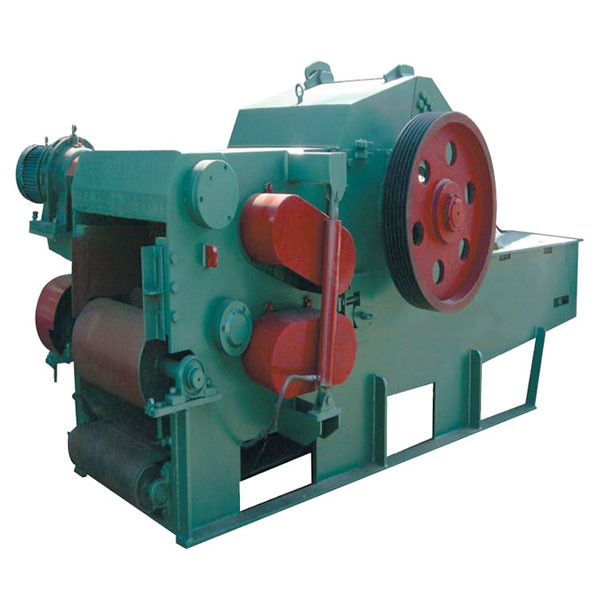

Hydraulic Press Crush Tree Timber Log Wood Chipper Shredder Machine 0



Wood chipper shredder machine features

  1. Widely application. it is mainly used to crush big wood logs or wood timber, plywood, wood branches, furniture waste into small chips, the thickness of last chips is 1.5mm-3mm, length and width is about 20-50mm, it is wood chips, not wood shavings, by adjusting knives gap, outlet chips dimension will be adjusted.
  2. Equipped with 4m long feeding belt conveyor, when conveying logs, the speed can be adjusted. also, it can connect with outlet conveyor to transport away crushed wood chips.
  3. the wood chipper can work on the ground-- outlet conveyor at the chipper bottom, then will no need to make foundation. Also can install outlet conveyor at the behind of wood chipper, then just need to do foundation under the ground.
  4. Knives can be renewer by knives grinder, which can grind knives newer after certain time, no need to change knives often.
  5. Limit feeding door dimension, but length no limit.

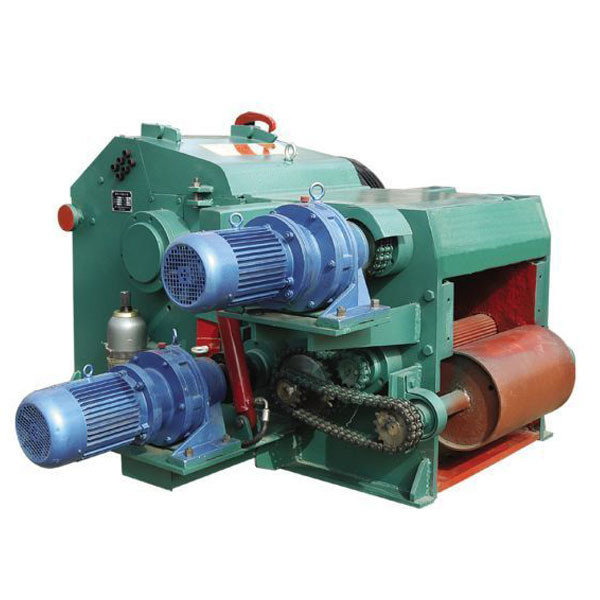

Hydraulic Press Crush Tree Timber Log Wood Chipper Shredder Machine 1
