Fully Automatic Coconut Fiber 22 KW Pallet Making Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, T/T Supply Ability : 5 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYYJSM-1000

Detail Information

Product Name: Coconut Fiber Pallet Machine Voltage: Customized
Condition: New Warranty: 1 Year
Dimension(l*w*h): 2600*1300*2300mm After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

Coconut Fiber wood pallet maker

,

Fully Automatic wood pallet maker

,

22 kW pallet maker machine

Product Description

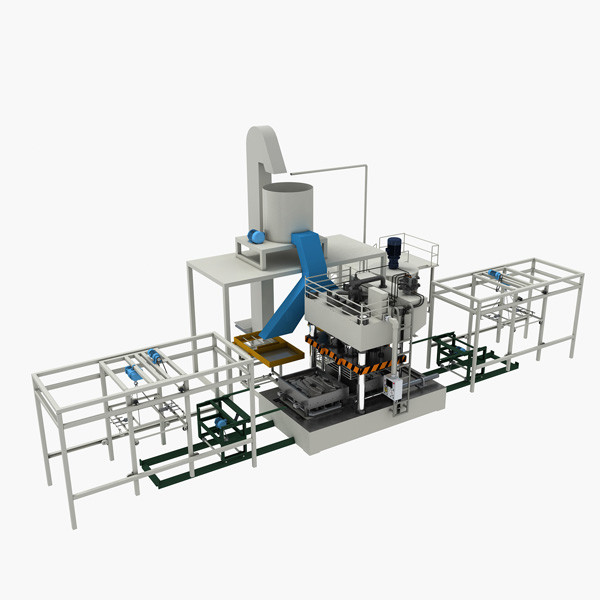

Fully Automatic Coconut Fiber Pallet Making Machine



Coconut fiber is a natural fiber extracted from coconut, it can be used in products such as floor mats, doormats, brushes, and mattresses, also used in upholstery padding, sacking, and horticulture. but now our company design a solution of coconut fiber pallet.



coconut fiber pallet making machine is a hot press machine to make pallet, before start press, we should crush the coconut or coconut fiber to small size, dry off the moisture, then we mix the materials and glue, last fill the mold and hot press, you will get the pallet.



Coconut fiber pallet making machine parameters



Coconut fiber pallet making machine
Model TYYJSM-1000
Voltage customized
Capacity 240 pieces/day (24hours)
Power 22 kW
Hydraulic cylinder diameter 350 mm
Hydraulic cylinder quantity 4 pieces
Pressure 0-1000 tons (adjustable)
Shaping cycle 300 seconds
Weight 30 tons
Dimension 4200*2200*3500 mm
Remarks: it includes two sets of normal mould along with one set machine.

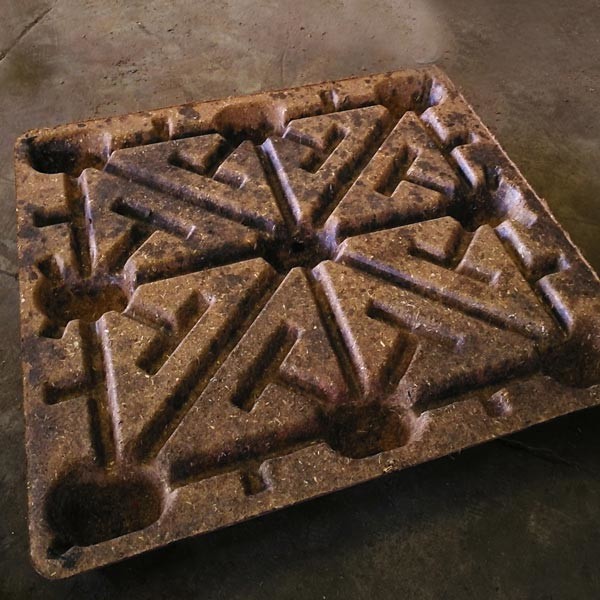

Fully Automatic Coconut Fiber 22 KW Pallet Making Machine 0



Coconut fiber pallet making machine features

  1. widely used, it also uses bamboo, bagasse, waste wood, waste plastic to make pallets.
  2. high capacity, the pallet was made by hot press technology, no nailing process, it can be supported by robot platform.
  3. long service life, the machine use high-quality part and brand electric components.
  4. high degree of customization, the pallet size and type all be customized, and easy to change when producing another type pallet.

Fully Automatic Coconut Fiber 22 KW Pallet Making Machine 1



ThoYu is the leading pallet machine manufacturer in China. And we have more than 15 years & production experience. Besides, our coconut fiber pallet making machine has been sold more than 25 countries. In addition, our plastic pallet machine also runs well in Mexico and other countries.
