Disk Small Timber Logs Wood Chipping Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 10-120 working days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 50 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYDX-1200

Detail Information

Product Name: Disk Type Wood Chipping Machine Capacity: 6-8 T/h
Main Power: 45 KW Cutter Diameter: 1200 Mm
Total Weight: 3560 Kg Dimensions: 2200*1200*1850 Mm
High Light:

Logs Wood Chipping Machinery

,

Timber Wood Chipping Machinery

,

Small Wood Chippers

Product Description

Small Diameter Wood Timber Logs Disk Type Wood Chipping Machine



The disc type wood chipping machine is composed of machine base, cutter head, feed port, cover, electric control system, and other parts. In order to continuously meet the market's high-quality, high-efficiency, and high-end requirements, our company renews and reforms the series of disc wood chippers year by year to continuously improve product performance.



The disc type wood chipping machine can cut logs, small diameter wood, etc. into high-quality industrial wood chips with uniform length, flat cuts, and uniform thickness. It can also cut ya wood, boards, etc., suitable for paper mills, particle board factories, fiberboard factories, and wood chip production bases.



Disc type wood chipping machine blades: ordinary chipper (4-6 knives) and multi-blade chipper (8-6 knives). These two chipper feeding methods have two types: oblique feeding and flat feeding (or horizontal feeding). The shavings of long logs are generally fed by a flat mouth, while shavings of short logs and slabs can be fed with an oblique mouth or flat mouth. The output of this disc type wood chipping machine is 2-160 cubic meters per hour, and users can choose the model according to their needs.



Disc type wood chipping machine parameters



Disk Type Wood Chipping Machine
Model TYDX-800 TYDX-1000 TYDX-1200 TYDX-1400
Capacity (t/h) 3-5 4-6 6-8 8-10
Main power (kW) 30 37 45 55-75
Cutter diameter (mm) 800 1000 1200 1400
Feeding port size (mm) 200*200 300*320 330*350 360*370
Max feed diameter (mm) Φ190 Φ290 Φ330 Φ350
Total weight (kg) 1680 2720 3560 4120
Dimensions (mm) 1800*700*1200 2100*1000*1300 2200*1200*1850 2600*1300*1900

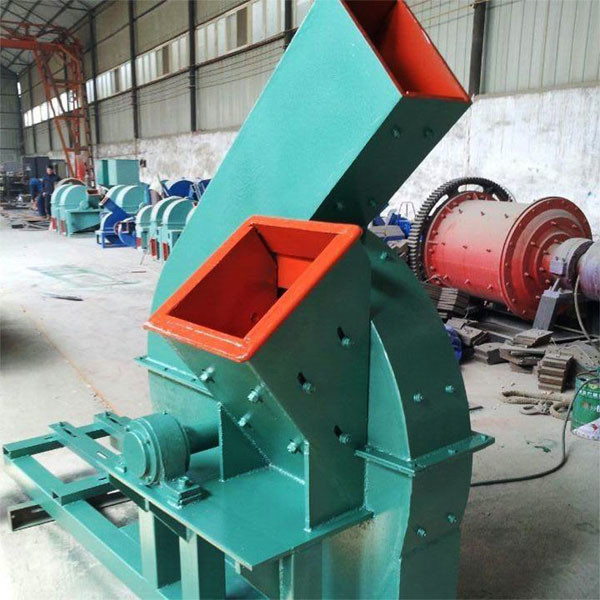

Disk Small Timber Logs Wood Chipping Machine 0



Disc type wood chipping machine performance features

  1. This series of disk type wood chipping machine adopts low-voltage or high-pressure motor, large wood chipper has belt wheel drive and direct drive two kinds; Feeding sub-level and inclined two ways, the material also has two ways of upper outfeed and lower outfeed.
  2. The disk chipper compact structure, reasonable layout, easy to install, easy operation and maintenance, high production capacity; cutting logs, high quality wood chips, and the length of wood chips can be freely adjusted within the prescribed range, is the domestic advanced disk chipper.
  3. Disk type wood chipping machine is composed of machine base, cutter plate, feed opening, cover, electric control system, and other parts.
  4. In order to continuously meet the market demand for high quality, high efficiency, high-grade, our company on the disk type wood chipper series of products year by year to update the transformation, and constantly upgrade the product level. At present, the disc type wood chipping machine of our company adopts wear-resistant plate, and the flying knife, bottom knife, and flying bolt are made of special steel.

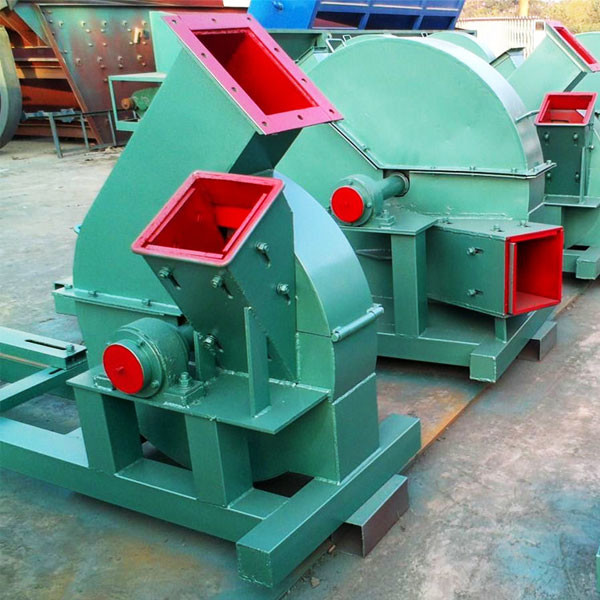

Disk Small Timber Logs Wood Chipping Machine 1
