Automatic Pallet Wood Chamfering Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C, D/A, Western Union, MoneyGram Supply Ability : 45 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-400DB

Detail Information

Name: Automatic Chamfering Machine For Wooden Pallet Overall Dimension: 3350*850*1300 Mm
Power: 3 KW Yield: 700 Pieces/hour
PLC Control: Adjustable Size Speed Control: Changeable
High Light:

Pallet Wood Chamfering Machine

,

Automatic Wood Chamfering Machine

,

3350mm Pallet Chamfer

Product Description

Automatic Chamfering Machine for Wooden Pallet / Pallet Chamfer



Introduction of Automatic Chamfering Machine for Wooden Pallet / Pallet Chamfer



Automatic chamfering machine for wooden pallet is one machine for wood pallet stringer, it can chamfer the bottom stringer with a small edge, and make the lift fork can hold the wood pallet easily.



Technical Specification of Automatic Chamfering Machine for Wooden Pallet / Pallet Chamfer

Model TY-400DB
Overall dimension 3350*850*1300 mm
Power 3 kW
Capacity 700 pieces/hour
Max width 30-40 mm
Deck board 90-130 mm
PLC control Adjustable size
Touch screen Easy to adjust
Speed control Changeable
Max speed 8000 rpm
Voltage 380 V, 50 Hz, 3P
Net weight 350 kg



Advantages of Automatic Chamfering Machine for Wooden Pallet / Pallet Chamfer

Automatic chamfering machine for wooden pallet can automatically the wooden floor to pour out the edges and corners, to facilitate the cart, forklift access; continuous feeding, feeding groove single put 30 pieces of material; the progressive motor, according to the production need to be adjusted slot size. Simple structure, convenient operation, high efficiency, the work can be 700 per hour of the wood; the edge of the product section smooth and neat, uniform specifications. The device is tray production process the essential link, because of its high efficiency, simple operation, etc. by the majority of manufacturers of all ages, will be more and more extensive application in the industries of wooden pallets.

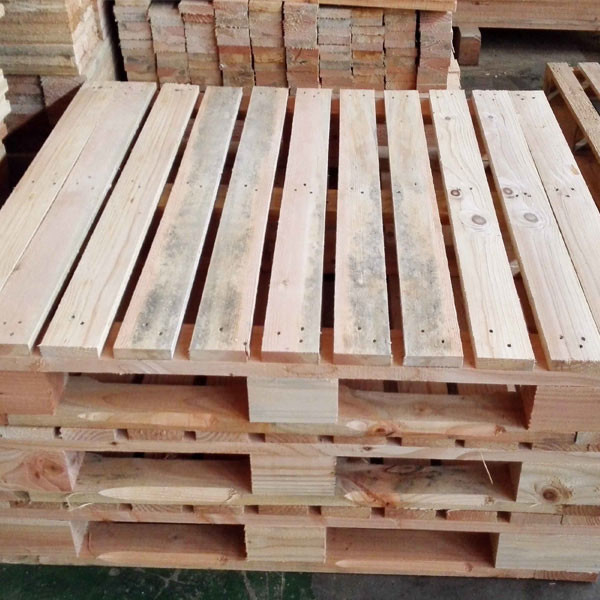

Chamfer function: the wooden pallet bottom plate automatically pours out the corners, which is convenient to push the cart, the forklift enters and leaves.

  1. Easy Operation: 1 worker.
  2. Wood board specification: 80-145 mm
  3. Working mode: automatic feeding
  4. Chamfer length range: 1300 mm, thickness 30-40 mm
  5. Chamfer width: 90-130 mm
  6. Working mode: continuous automatic feeding and discharging, 2 sides at the same time out

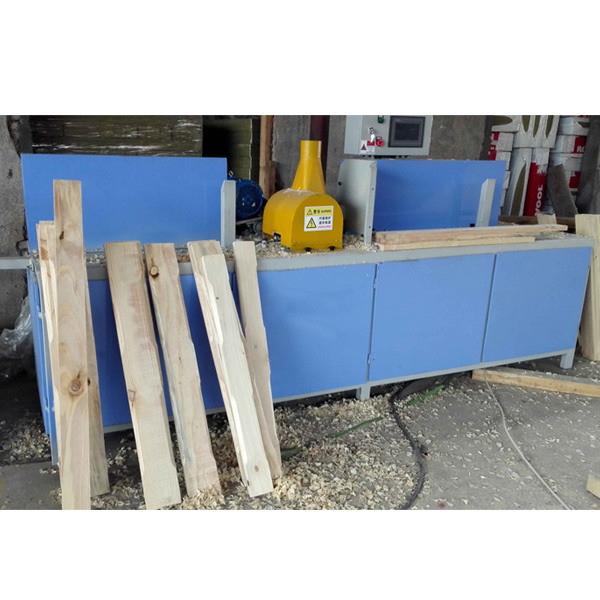

Automatic Pallet Wood Chamfering Machine 0

Features of Automatic Chamfering Machine for Wooden Pallet / Pallet Chamfer:

  1. High precision: cut out of wood material, vertical section, smooth and uniform.
  2. Low cost, less manpower, size convenient adjustment.
  3. Easy operation: equipment simple structure, one worker can operate.
  4. High security: the whole operation process, workers' fingers touch less than the cutting blade.
  5. Size can adjust: can input values, adjust the truncation of different lengths of wood material.

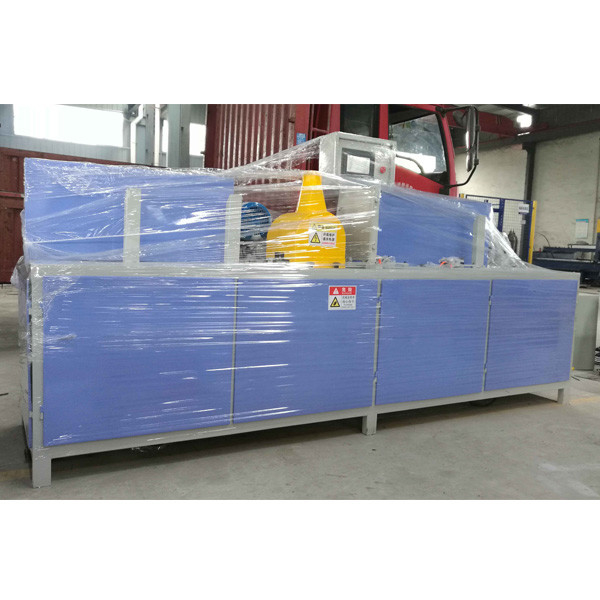

Automatic Pallet Wood Chamfering Machine 1
