Automatic European Wooden Block Pallet Chamfer

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 45 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TYKM-400

Detail Information

Name: Pallet Chamfer For European Wood Block Pallet Capacity: 700 Pieces/hour
Motor Power: 4.5 KW Edges Of The Corners Of The Pallet: 45º Angle
Worker: 1 Max Speed: 8000 Rpm
High Light:

Block Pallet Chamfer

,

Wooden Pallet Chamfer

,

pallet board chamfer machine

Product Description

Pallet Chamfer for European Wood Block Pallet



Introduction of Pallet Chamfer for European Wood Block Pallet

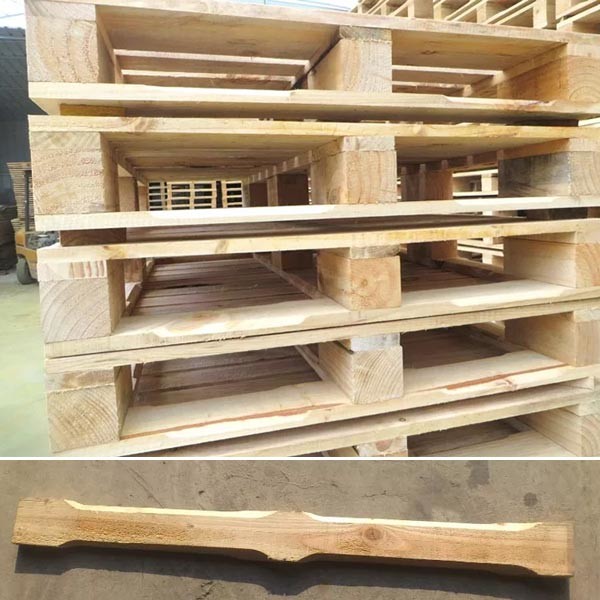

  1. Pallet chamfer for European wood block pallet helps you to kill the edges of the corners of the pallet at a 45º angle. And pallet chamfer for European wood block pallet is with the advantages of high efficiency, simple operation, favored by the majority of manufacturers, more and more extensive application in the industries of wooden pallets. Besides, pallet chamfer for European wood block pallet can be customized for different specifications of pallet processing.
  2. Pallet chamfer for European wood block pallet offers high performance with minimal maintenance. Standard features of pallet chamfer for European wood block pallet include 3 HP electric gear drive with a variable speed controller operated from a remote pedestal and auto chain tensioner for smoother operation, less maintenance and longer life. The tilt-back, the flush front design contributes to consistent feeding and allows for easy loading and unloading.
  3. Pallet chamfer for European wood block pallet also features a mechanical auto restack at the boarding exit. And pallet chamfer for European wood block pallet includes cutters with offset, indexable carbide inserts for less chatter, and a better finish. Each cutter head of pallet chamfer for European wood block pallet is independently controlled by an air cylinder which allows for easy change over from single-sided chamfer to dual-sided with the turn of a selector switch. Independent head design reduces moving weight which contributes to quicker cutter response and less wear and tears on moving parts.



Characteristics of Pallet Chamfer for European Wood Block Pallet:

  1. Small footprint.
  2. Easy operation: equipment simple structure, one worker can operate. Pallet chamfer for European wood block pallet is simple and flexible, which can be operated by one worker.
  3. High yield rate, smooth notch without burrs. Pallet chamfer for European wood block pallet could be continuously feeding and discharging.
  4. Fast sawing and cutting of piers; accurate accuracy; safe.
  5. High precision: cut out of wood material, vertical section, smooth and uniform.
  6. Low cost, less manpower, size convenient adjustment.
  7. High security: the whole operation process, workers' fingers cannot touch the cutting blades.
  8. Size can adjust: can input values, adjust the truncation of different lengths of wood material.

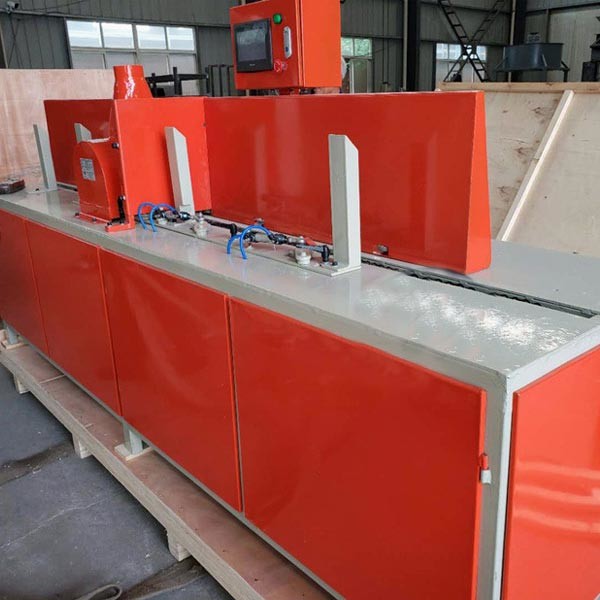

Automatic European Wooden Block Pallet Chamfer 0

How does Pallet Chamfer for European Wood Block Pallet Work?

  1. Set and adjust the specifications for grooving
  2. Put the finished wood into the feed slot of pallet chamfer for European wood block pallet.
  3. After confirming that the wood is locked
  4. The cutter head of pallet chamfer for European wood block pallet starts and automatically pushes the wood forward to the slotting cutter.
  5. The blade rotates quickly
  6. Dig out the notch of the finished wood
  7. Waste wood chips are discharged from the chip discharge port of pallet chamfer for European wood block pallet.



Technical Specification of Pallet Chamfer for European Wood Block Pallet

Model TYKM-400
Overall dimension 3000*700*1300 mm
PLC control Adjustable size
Touch screen Easy to adjust
Speed control Changeable
Max speed 8000 rpm
Capacity 700 pieces/hour
Main motor power 4.5 kW
Voltage 380 V, 50 Hz, 3P
Net weight 350 kg
