Auto Stacking Euro Block Pallet Nailer Machine

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 20-50 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 25 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1300MD

Detail Information

Item: Euro Block Pallet Nailing Machine With Fully Automatic Stacking Ourput: 1-2 Pallets/minute
Application: Euro Wood Pallet Production Line Applicable Industries: Manufacturing Euro Pallet Plant
Condition: New Operating Mode: Touch Screen Control
High Light:

block pallet nailer

,

auto nailer pallet machine

,

auto pallet nailer

Product Description

Euro Block Pallet Nailing Machine with Fully Automatic Stacking



Introduction of Euro Block Pallet Nailing Machine with Fully Automatic Stacking

Euro block pallet nailing machine with fully automatic stacking mainly can apply to produce Euro block pallets and non-standard European block pallets. Euro block pallet nailing machine with fully automatic stacking is also available, and the one-stop solution of pallet nailing, stacking, and production. Euro block pallet nailing machine with fully automatic stacking adopts servo motor, original numerical control system, and precision servo reducer. Euro block pallet nailing machine with fully automatic stacking runs with high precision and small error, and can work continuously for ten thousand meters without error, which ensures the high consistency of working dimension.

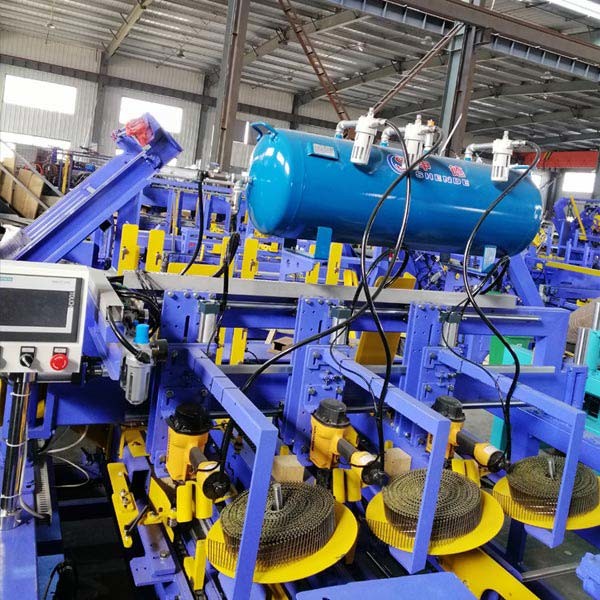

Auto Stacking Euro Block Pallet Nailer Machine 0

Main Technical Parameters of Euro Block Pallet Nailing Machine with Fully Automatic Stacking

Model TY-1300MD
Productivity 1-2 pallets/minute
Motor power 1.5 kW servo motor
Function Making wood pallet
Air pressure 0.8 MPa
Voltage 380 V, three-phase
Working mode Artificial feeding/Auto nailing/Auto stacking
Operating mode Touch screen control
Operational mode Pneumatic operation
Nail gun speed 7 time/second
Nail apply Less than 80 mm
Application Wood pallet production line
Applicable industries Manufacturing plant



Specifications of Euro Block Pallet Nailing Machine with Fully Automatic Stacking

  1. Suitable for block pallet size: 800*1200 mm, 1200*1000 mm, 1000*1200 mm, 800*600 mm, 600*400 mm and so on.
  2. Pallet type: Euro pallets, non-standard European pallet, custom-made pallets
  3. Tolerance: +/-3 mm
  4. Foot & roof board thickness: 10-25 mm
  5. Easily adjustable pallet size
  6. High efficiency
  7. Worker-friendly
  8. Gain more profit
  9. Easy operation
  10. Euro block pallet nailing machine with fully automatic stacking adopts a fully automatic system, PLC control, simple touch screen operation, accurate pinning position with high efficiency.

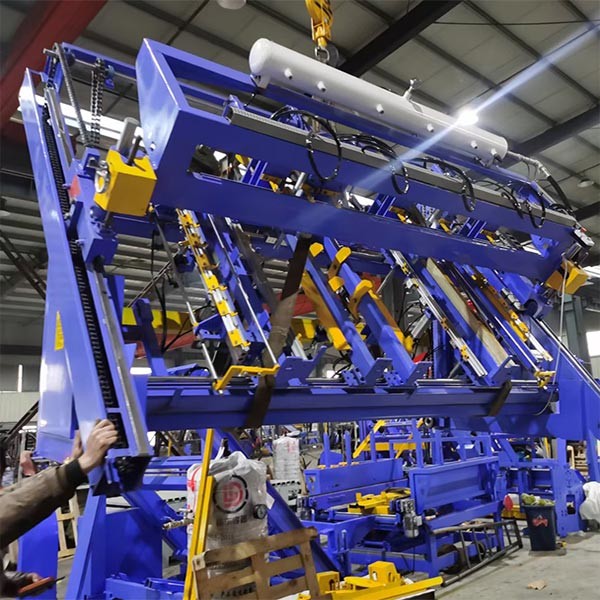

Auto Stacking Euro Block Pallet Nailer Machine 1

Features of Euro Block Pallet Nailing Machine with Fully Automatic Stacking

  1. Euro block pallet nailing machine with fully automatic stacking will auto clamping after the worker put the wood pallet bottom bean in the machine, then put wood pallet plate, after automatic nailing. When complete, the work needs to flip the other side, put the plate in, then nailing it.
  2. Euro block pallet nailing machine with fully automatic stacking is with touch screen control, advanced programming, feeding mechanism, and nailing machine multi-axis linkage at the same time when working. Euro block pallet nailing machine with fully automatic stacking achieves fast and efficient nailing work. One more thing, it could switch different program bases on different material plates to produce non-standard pallets.
  3. Euro block pallet nailing machine with fully automatic stacking can achieve the effect of automatic receiving, which is convenient for forklift transportation; at the same time, saving the time of the nailing machine and the stacking operation. On account of the workpieces do not need to be stacked and rotated, and directly flipped into the lifting platform. It not only reduces the labor intensity, but also reduces time and space for handling. Euro block pallet nailing machine with fully automatic stacking will form a line with nailing machine, after nailing, flip the wood pallet to stacking platform. It will achieve the effect of automatic collect wood pallet and easy to transport. It saves labor and operation time.

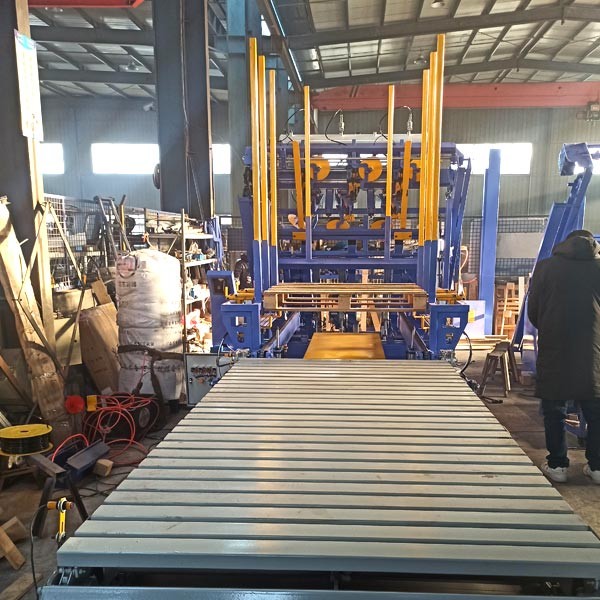

Auto Stacking Euro Block Pallet Nailer Machine 2
