0.8MPa 59″ Wooden Pallet Assembly Machine With Pallet Stacker

Minimum Order Quantity : 1 set Price : Negotiation
Packaging Details : Strong wooden pallet for global shipping Delivery Time : 15-45 work days
Payment Terms : L/C D/A Western Union MoneyGram Supply Ability : 35 sets per month
Place of Origin: China Brand Name: ThoYu
Certification: CE Model Number: TY-1300MD

Detail Information

Name: Pallet Nailing Machine And Pallet Stacker For Wooden Pallets Maximum Length Of Pallet: 59″
Maximum Width Of Pallet: 59″ Function: Making Wood Pallets
Applicable Industries: Manufacturing Pallet Factory Nail Apply: Less Than 80 Mm
High Light:

Wooden Pallet Assembly Machine

,

0.8MPa Pallet Assembly Machine

,

Automated Pallet Stacker

Product Description

Pallet Nailing Machine and Pallet Stacker for Wooden Pallets



Introduction of Pallet Nailing Machine and Pallet Stacker for Wooden Pallets



  1. Pallet nailing machine and pallet stacker for wooden pallets is the solution suitable for companies that start the pallet industrial production and for the ones which need to satisfy special orders or limited volumes without engaging the main plants.
  2. Pallet nailing machine and pallet stacker for wooden pallets for decks, stringer pallets, block pallets, and more; and an array of modules to customize your production line to enhance productivity, speed, and customization as your need.
  3. Pallet nailing machine and pallet stacker for wooden pallets is for nailing and assembling wooden pallets.
  4. Pallet nailing machine and pallet stacker for wooden pallets is an adjustable, semiautomatic pallet nailing table for pallets of different sizes.
  5. Pallet nailing machine and pallet stacker for wooden pallets’ ergonomic construction allows fast and easy modification of the pallet size. The conventional storage can store 2 stacks of pallets and 16 pallets per stack.
  6. Possibility of making 2 pallets of the same size during the same operation of pallet nailing machine and pallet stacker for wooden pallets.
  7. Pallet nailing machine and pallet stacker for wooden pallets runs with high precision and small error, and can work continuously for ten thousand meters without error, which ensures the high consistency of the working dimension.
  8. These features of pallet nailing machine and pallet stacker for wooden pallets will allow the operator to use varying degrees of width, thickness, and conditions of material without adjustment or set-up.

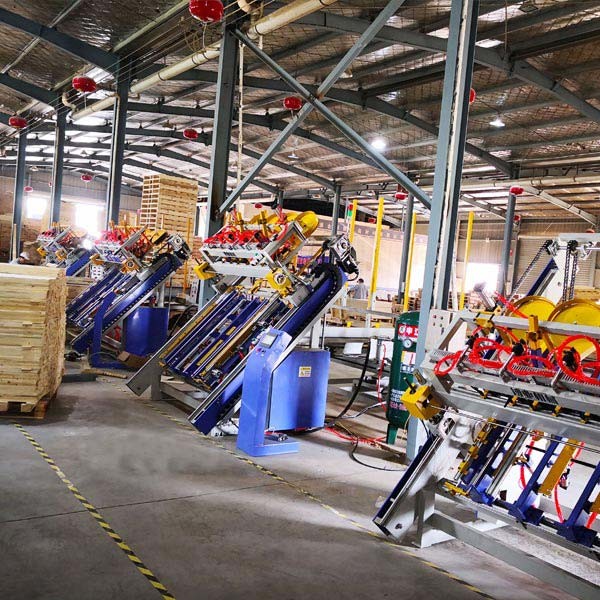

0.8MPa 59″ Wooden Pallet Assembly Machine With Pallet Stacker 0

Characteristics of Pallet Nailing Machine and Pallet Stacker for Wooden Pallets

  1. User-friendly operation by means of a touch terminal guiding the user.
  2. Increased productivity (1 or 3 pallets per minute depending on machine configuration).
  3. Production change in a matter of seconds.
  4. 2 programming modes
  • Digitally via the PC (entering of coordinates).
  • Manually via the touch terminal (learning).
  1. Storage of several thousands of products in memory.
  2. Numeric control of machine head positioning.
  3. The precision of positioning (+/- 1 mm).
  4. High translation speed (1 m/s).
  5. High nailing cadence (a row of 3 nails per second).
  6. Nailing of pallets with several levels thanks to the heads equipped with the pneumatic jack. (Maximum difference between levels: 30 mm).
  7. Pneumatic compressing of boards during assembly.
  8. One or two loading stations.



Parameters of Pallet Nailing Machine and Pallet Stacker for Wooden Pallets

Model TY-1300MD
Productivity 1-2 pallets/minute
Motor power 1.5 kW servo motor
Function Making wood pallet
Air pressure 0.8 MPa
Voltage 380 V, three-phase
Working mode Artificial feeding/Auto nailing/Auto stacking
Operating mode Touch screen control
Operational mode Pneumatic operation
Nail gun speed 7 time/second
Nail apply Less than 80 mm
Application Wood pallet production line
Applicable industries Manufacturing plant
Maximum length of pallet 59″
Maximum width of pallet 59″
Maximum height of pallet 7″
Minimum nail length 1.37″

0.8MPa 59″ Wooden Pallet Assembly Machine With Pallet Stacker 1

Features of Pallet Nailing Machine and Pallet Stacker for Wooden Pallets

  1. Pallet nailing machine and pallet stacker for wooden pallets is for block and stringer pallets. And the control panel is equipped with a touch screen that can store data for up to 100 pallets.
  2. Besides, the operator screen can be read in English.
  3. Pallet nailing machine and pallet stacker for wooden pallets is made of heavy-duty electro-welded steel.
  4. Simple to operate. The nail beam of pallet nailing machine and pallet stacker for wooden pallets has a balancing system for accurate alignment and has a self-lubricating oil pump. Nail drivers and clamps are hardened.
  5. Pallet nailing machine and pallet stacker for wooden pallets can run different size nails at the same time.
  6. Pallet nailing machine and pallet stacker for wooden pallets is manufactured according to the CE rules and is the safest and quietest machine on the market.
  7. Pallet nailing machine and pallet stacker for wooden pallets is designed to assure high production and flexibility with low operating costs.

0.8MPa 59″ Wooden Pallet Assembly Machine With Pallet Stacker 2



Advantages of Pallet Nailing Machine and Pallet Stacker for Wooden Pallets

Pallet nailing machine and pallet stacker for wooden pallets can achieve the effect of automatic receiving, which is convenient for forklift transportation. Automatic nailing and stacking are connected to the whole production of the stringer wood pallet. After the nailing process is completed, the finished wooden pallets are automatically flipped onto the stacking platform by a flipped workpiece and stacked neatly. At the same time, saving the time of the nailing machine and the stacking operation. On account of the workpieces do not need to be stacked and rotated, and directly flipped into the lifting platform. It not only reduces the labor intensity, but also reduces time and space for handling.



Pallet nailing machine and pallet stacker for wooden pallets is equipped in the automatic nailing machine of wooden pallet, which can save space and improve work efficiency. The auto pallet nailing machine is equipped with automatic pallet automatic corner conveying, which can be transported out from the pallet stacker and can store 4 stacks of nearly 100 pallets to save space. Pallet nailing machine and pallet stacker for wooden pallets can realize semi-automatic/automatic pallet nailing. Pallet nailing machine and pallet stacker for wooden pallets is equipped with pallet finished product flipping and picking device, with a high automation degree, and the work process flows smoothly and tightly in each step. Pallet nailing machine and pallet stacker for wooden pallets adopts servo motor, original numerical control system, and precision servo reducer.



0.8MPa 59″ Wooden Pallet Assembly Machine With Pallet Stacker 3
