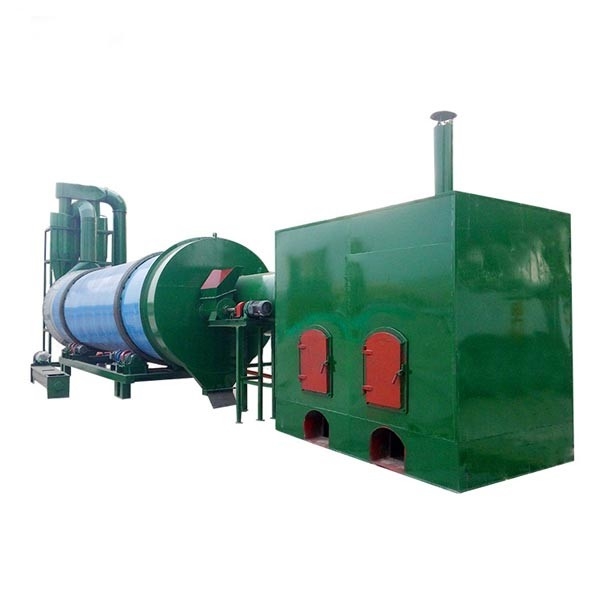

Straw Sawdust Rotating Drum Dryer

Product Details:
Place of Origin: China
Brand Name: ThoYu
Certification: CE
Model Number: TYTG2210/3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Strong wooden pallet for global shipping
Delivery Time: 10-40 working days
Payment Terms: L/C, D/A, Western Union, MoneyGram
Supply Ability: 15 sets per month

Detail Information

Product Name: Straw Sawdust Rotary Drum Dryer Capacity: 154.0-67.5 T/d
Early Moisture: 35-50% Drying Temperature: 270±30℃
Total Weight: 27000 Kg Cover Area: 8m×18m
High Light:

Sawdust rotating drum dryer

,

Straw rotating drum dryer

,

67.5 t d rotary drum dryer

Product Description

Agricultural Waste Recycling Straw Sawdust Rotary Drum Dryer



Straw sawdust rotary drum dryer is widely used to dry humidity granularity materials in the industries of mineral dressing, building material, metallurgy and chemical, coal mining, etc. Wide supply scope and simple operation are its main features, materials should be dried to 3-10% water content to meet the demands for briquette.



Straw sawdust rotary drum dryer application



Coal, coke, Clays, phosphates, Starch Pulp, Minerals, fertilizers, Beet pulp, Floatation concentrates, Animal feeds, Germ, stillage, Sludges, Etc.



Technical Parameters of straw sawdust rotary drum dryer



Model Capacity(t/d) Vaporization capacity(t/h) Early moisture(%) Final Moisture(%) Drying Temperature(℃) Total motor power(kW) Total weight(kg) Cover Area(m²)
TYGT1210 44.0-19.5 0.565 35-50% 12-15% 270±30℃ 28 13500 5m×15m
TYTG1409 46.5-20.5 0.595 34 15500 5m×15m
TYGT1615 88.0-39.0 1.130 45 19500 6m×22m
TYTG2010/3 144.5-63.5 1.850 78 25000 8m×18m
TYTG2210/3 154.0-67.5 1.976 85 27000 8m×18m
TYTG2510/3 193.0-83.5 2.427 110 35000 10m×18m
TYTG2512/3 227.0-100.0 2.912 125 38000 10m*20m
TYTG2912/3 268.0-120.0 3.432 135 43500 10m*22m

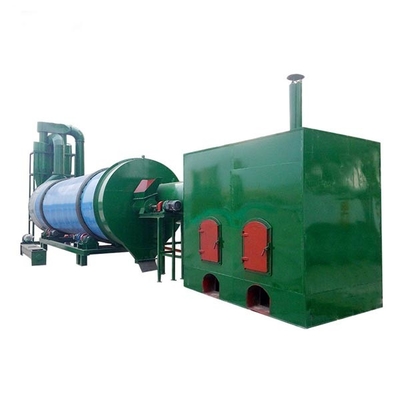

Straw Sawdust Rotating Drum Dryer 0



How does straw sawdust rotary drum dryer works



The material is fed in the rotary drum dryer by the conveyor, and when it’s coming through the cylinder, the hot air will flow from it and makes it dried. The dried material will be collected at the output.



In this drying process, the material will move as the cylinder rotation. With gravity, the material will fall from high-end to low-end. There are also copy boards in the dryer to raise the material, so that the material and hot air’s contact surface area increases, which helps to increase the drying rate and let the material forward.



After drying, the fine particles are collected by the dust collector, and the exhaust gas is discharged by the dust collector.

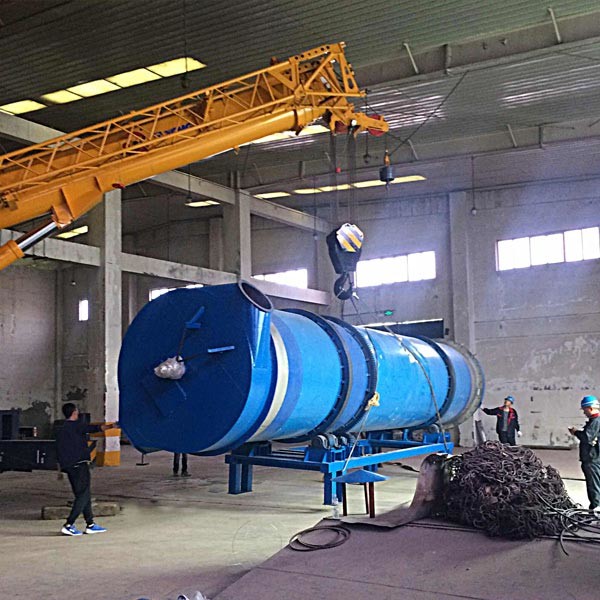

Straw Sawdust Rotating Drum Dryer 1





Features for straw sawdust rotary drum dryer



Compare to other drying machines, the rotary dryer has advantages as follow:

  1. With high capacity, continuous production;
  2. Simple structure, easy on operating;
  3. Low failure rate, low cost of maintenance.
  4. With the wide range of adaptation, it can be used to dry various material even with high adhesion;
  5. Flexible operation. The quality of the final product won’t be much changed when the capacity changes.
  6. Easy to clean.

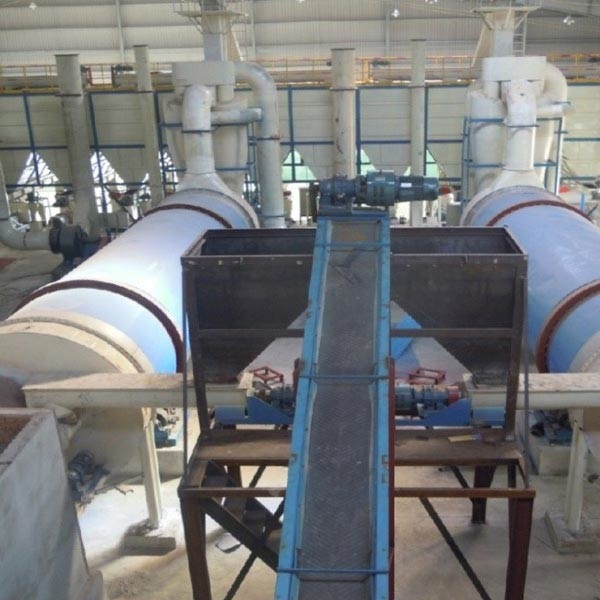

Straw Sawdust Rotating Drum Dryer 2
